Belt Conveyor Automated Sand Blaster Automatic Batch Sandblasting Machine

Product Description

Product Description

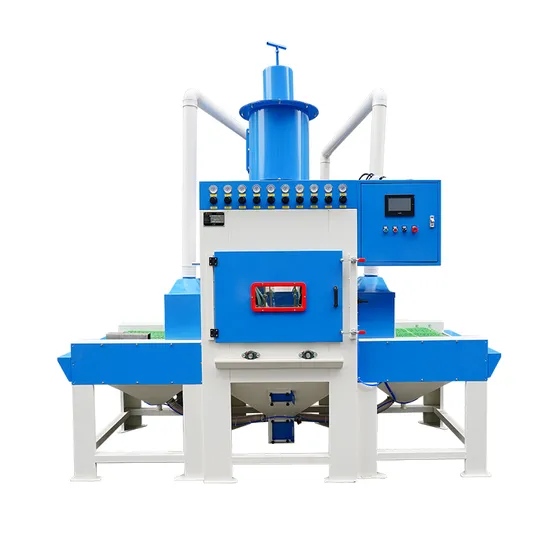

Belt conveyor automated sand blaster automatic batch sandblasting machine
This automatic sandblasting machine is recommended for batch processing flat shape or tube shape workpieces with high efficiency and superior uniformity.
Widely used for cleaning contaminants, etching and decorating, roughing surface, descaling, removing rust and old coatings, etc.

This automatic sandblasting machine is ideal for processing flat shaped workpieces such as: aluminum plate, glass plates, ceramic tile, steel plate, stainless steel plate, mobile shell, notebook computer shell, etc Widely used for cleaning contaminants, etching and decorating, roughing surface, descaling, removing rust and old coatings, etc.
Detailed Photos
Conveyor Belt Automatic Sandblasting Machine Features
1. The belt conveyor speed can be steplessly regulated by the inverter based on actual needs.

2. The quantity of blasting guns can be configured 8pcs, 12 pcs, 16 pcs or more nozzles in wear-resistant boron carbide material.

3. Automatic blasting guns can be controlled with adjustable swinging speed and angle, in order to cover more surface area.

4. Using advanced PLC control system achieves high automation and stability, low failure rate.

5. Independent filter dust collector, powerfully remove dust, keeps the working chamber dustless and increases abrasive recyling rate.
Working Principle
Working Process of Conveyor Belt Automatic Sandblasting Machine
The operators put or fix the workparts on the conveyor belt, when the workpiece is transported into the sandblasting chamber, the blasting guns automatically swinging and blasting, ensures the products is blasted entirely. Finally the workparts comes out from the other side of the conveyor to be discharged.
Product Parameters
Conveyor Belt Automatic Sandblasting Machine Specifications

Type:	Pass Though Continuous Conveyor Type
Model:	KF-6010-10A
Machine dimensions:	Length3200 * Width1400 * Height2400 mm
Working Space size:	Length1000 * Width1300 * Height1000 mm
Through Size	Length800 * Width300 mm
Dust collector size:	Length1200 * Width700 * Height1900mm
Dust Collector Filter Qty	6pcs
Dust fan motor power:	5.5kw
Blast gun swing motor:	370W 380V 50HZ
Lighting:	18W fluorescent lamps, 2pcs
The number of blast nozzles:	10pcs ( boron carbide nozzle)
Machine Shell:	2.5mm-6mm cold-rolled steel plate welded
Perspective window:	2 frames
Abrasive funnel	3pcs
Pressure	5-8 bar (kg / cm2)
Air compressor	6.8 cubic meter
Conveyor loading capacity:	300 kg
Total power:	8.8KW
Total weight:	1.55 tons

Note: We provide Custom Design service. The size of working chamber, the blast gun quantity can be made as customer's requirements. The conveyor can be chosen from belt type, roller type, etc. Hot-selling Product
Kafan Automatic Sandblasting Machine for Different Applications
We offer various styles of sandblasting machine, automatic or manual sandblasting machine, dry type, wet type, high pressure type, all machine size and configuration can be customized. Can be applied to a variety of workpiece, such as hub, alloy wheel, aluminum profile, tableware, auto parts and so on. Customer Feedback
