Steel Ring Die for Feed Pellet Mill and Wood Pellet Machine

Product Description

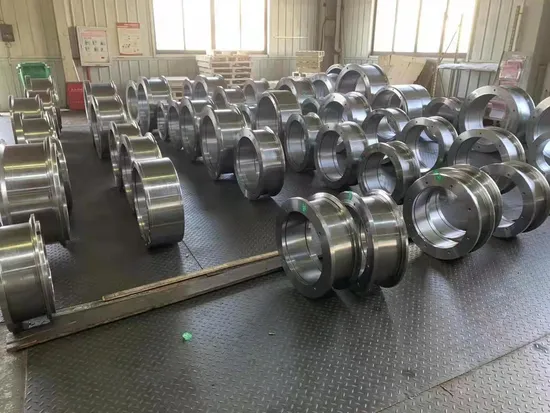

Steel Ring Die for Feed Pellet Mill and Wood Pellet Machine
1. General Introduction of Ring Die
Ring die is one of the most important part of feed pellet mill and wooden pellet production. Its quality determines directly the quality and output of pellet, and also affects the running state of the equipment which related to the production efficiency and energy consumption.
2. Main Applications of Our Production
Our products are widely applied to animal feed granular, which can produce Fish/Duck/Sheep/Pig/Shrimp/Broiler Pellets and so on.
Our products are widely applied to biomass granulator, which can press woods, bean pulps, rice husks and so on.
3. Specification Parameter

Pellet Die Type	Ring Die
Material	Steel,Stainless Steel,Alloy Steel
Diameter of Ring Die	1mm-22mm
Outer Diameter of Workpiece	up to 1500mm
Inner Dianeter of Workpiece	up to 900mm

Some statistics you might want to know:

Varieties	Hole Diameter	Compression Ratio
Poultry Feed	2.0-4.5	1:9-1:20
Shrimp Feed	0.8-2.0	1:20-1:35
Fish Feed	1.5-5.0	1:10-1:25
Crad Feed	1.5-5.0	1:10-1:26
Sheep Feed	4.5-10.0	1:6-1:1:12
Biomass/Fertilizer	5.0-18.0	1:4-1:10

Anyways, we can manufacture different kinds of ring dies according to your requirements or your drawings.
ABOUT US:
Founded in 2003, Ma'anshan Chenxu Machinery Manufacturing Co., Ltd. belongs to high-end equipment manufacturing industry, our products are popular at home and abroad, exported to North America, Southeast Asia, the Middle East, the European Union, South Africa and other regions.
The company has processed equipment such as 2500 ton press, 6 ton, 1 ton, 750 kg forging hammer, 4.2-meter-diameter CNC ring rolling machine and die forging machine to produce wear-resistant and corrosion-resistant stainless steel ring die, rolling knife, plate shear, stainless steel ring, flange, mechanical parts, etc.
