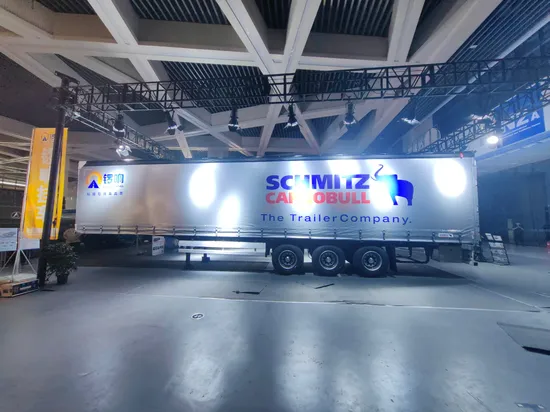

Russian Ottc Certification Can Be Provided 3 Axle 40FT Curtain Side Trailer/Van Type Box Type Semi Trailer for Sale

Product Description

Vehicle specification
Vehicle Outline (box size)
Length			14000(13900)mm
Width			2550(2450)mm
Height			4000(2700)mm
Stringer specification
Height			400mm (low temperature resistance 700K2)
Upper wing plate			8mm/140mm
Lower wing plate			10mm/140mm
Ventral plate			6#
Vehicle specification
Common name			Bent parts 4# Punching
Second layer			bent part
Side girder			Outer G-type 3.0# for bent parts Aluminium track for upper edge beam
Column			Front and rear bending parts
Base plate			Bamboo glue board-28# thick After installation, apply seam sealer.
Front gear			Back gears to be live, laminate for front gears
Tool box			1pc 1.5m long 0.6m wide 0.5m high Aluminium alloy for axle rear end
Spare tire rack			1 galvanised
Air storage cylinder			2 x 50 litre cylinders Aluminium alloy
ABS			WABCO warning light fitted
Lamps			Pull-out warning light at rear end
Protective mesh			Aluminium alloy
Traction Pins			JOST 50# Live Pins
Outriggers			Guangdong Fuhua axle 28T external outrigger linkage Round foot
Synchronised Valves			Imported WABCO
Airbags			6 airbags, full lift, front axle lift (WABCO)
Axle			1840 triple axle 13T disc brake (Shenli)
Tyres			Triangle 385/65R22.5 (7 sets)
Steel rings			Factory 11.75 (7pieces)
Suspension			Air suspension
Brake air chambers			Dual air chambers 6 pcs.
Power Supply			24V 7-hole socket
Bumper			Rear bumper made of through Aluminium
Mudflaps			Plastic fenders straight
Color			To be determined

Product advantages 1.Side member of upper camber structure:As per the mechanical analysis,the unique overall camber structure of the longitudinal beam is adopted to ensure lifetime downward bending-free of crossbeams and effective save fuel consumption under same bearing load and build maximum economic value for users. 2.Sophisticated process:The main parts of the vehicle are fabricated by advanced equipment.The longitudinal beams are welded by imported fully automatic tracking submerged arc welding machine.The wheels and axles are assembled by assembly machine and the wheelbase is guaranteed by distance measuring equipment. 3.Suspension system:The characteristic new suspension system and imported US Holland suspension system feature balanced load among various axles.The tie rod angle of system is reasonably designed to reduce the instant friction between tire and ground and the abnormal tire wear during the frequent operation.The snap rings for shafts are one of integral casting. 4.Axles:The axles choose the quality products manufactured by professional factory,featuring high bearing capacity and difficult deformation.In addition,the optional anti-lock brake system(ABS) from domestic or foreign renowned brand can effectively eliminate the side slip and drifting of vehicle due to locking of wheels in event of emergency braking and improve the driving safety of the vehicle. 5.Light of dead weight:The partial weight reduction is conducted in multiple portions on the premises of guaranteeing the structural strength.While reducing the dead weight,the bearing capacity is effectively guaranteed. 6.Low bearing surface:The optional goose neck structure of beam effectively reduces the height of bearing surface,lowers the gravity center,and improves the transport safety. 7.Humanized design: →The limiter is added to the spin lock to ensure safer transport; →The design of spin lock handle features beautiful and elegant and easy operate; →The operating handle of front enclose spin lock is located within the front enclosure frame,in order to prevent the handle from scratching the accessories of main unit. →Two positioned three-way valve is added to the brake system to improve the safety of parking brake. 8.Electric system:The electric system adopts the genuine fully sealed harness from domestic renowned brands.The lamps adopt new LED lamp,featuring high illumination intensity and light perception,high mist penetration,stale working performance and long service life. 9.Welding procedure:Frame and top-bottom welding are all compressed tightly with pneumatic-hydraulic clamping,automatic transmission and other large tools welding,effectively control welding deformation and guarantee the smoothness and technical requirements.The turnover model makes the welding strength;The electric tilting system controls the manufacture process spare part distortion.Mixes gas welding ensures the welded joint quality. 10.Painting craft:Using the baking varnish craft,primer twice,top coat twice and detection is made strictly according to the national standard for film thickness to guarantee the paint quality and brightness.
