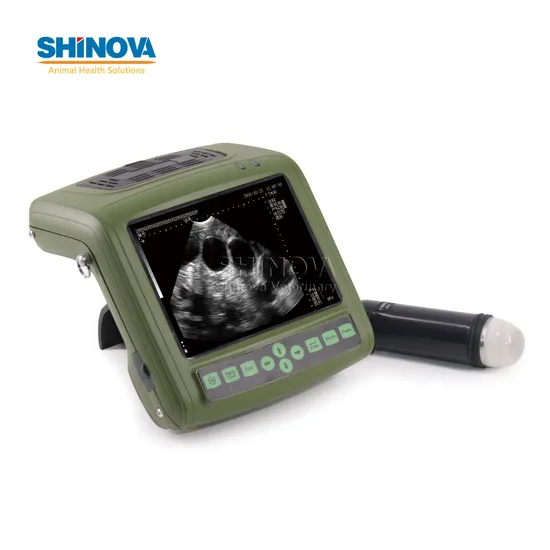

Veterinary Medical Equipment Handheld Veterinary Ultrasound (SonoScan B6V)

Product Description

Full digital Mechanical Sector ultrasonic diagnostic instrument
Model: SonoScan B6V
Target customer:
Breeder, farmer. They mainly see pregnancy, low budget.
Animal: Pig, cattle, sheep, dog, cat, ect.
Features:
l Economic price.
l Wrist design: truely innovative.
l Smart and light : 5.7" high resolution color LCD , 1.1kg weight.
l Menu operation. Very easy.
l 1 pcs Internal li-battery: work for 200 minutes.
l USB port: directly store image to U disk.
l Splash-proof, dust-proof, unique window radiator, avoid farmhouse cross infection.
Technical Specification:
l Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of
ultrasonic hardware system.
l 5.7" High resolution color LCD, high brightness, high contrast, wide visual, suitable for
outdoor use.
l Language: Chinese/English switchable.
l Body mark: 1. general use 2.bovine 3.canine 4.equine 5.feline 6. Cardiology, 7.swine---7
kinds, total 27 pcs of body marks with probe position.
l Display mode:B,2B,4B ,B/M,M, total 5 kinds.
l 5 kinds of Magnification, maximum display depth is 200mm.
l Gain range:0~127dB
l Dynamic range:27~90dB
l Gray:256
l Frame frequency:30 frames/second.
l Pseudo-color: 8 kinds (incl. B/W).
l Local zoom and coloring.
l Dual-mode TV output:PAL/NTSC, connecting to thermal printer and ultrasonic working station.
l Net weight:1.0kg.
l Main unit size:155x180x80mm(length x width x height).
Image storage:
l Permanent image storage: 100 frames.
l USB port support one-key storage image to USB.
Measurement and analysis:
l Puncture guiding function,(2 guiding lines, angel and position adjustable)
l General measurement:distance,Perimeter, area (trace method, ellipse method), volume, etc.
l Cardiac measurement: depth, slope, heart rate, time.
l OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and
llama.
l OB report function
Power supply:
l Dual power supply. Power:AC110/230 -15%~+10%(self-adaption supply voltage)
60/50Hz±1Hz.
l Battery: two pcs of high-capacity lithium Battery( 2400MAh) ,more than 400 minutes
Work
Standard configuration
l Main unit: 1 pc
l 3.5MHz waterproof mechanical sector probe : 1 pc.
l Power adapter: 1 pc
l Internal battery : 1 pc
l leather case: 1 pc
l Base Charger, belt, bracket, shutter release: 1 pc for each.
Optional configuration:
l USB flash disk
l Mouse
l Thermal printer (P93W-S)
l Battery(2400mAH)
l Black suitcase
