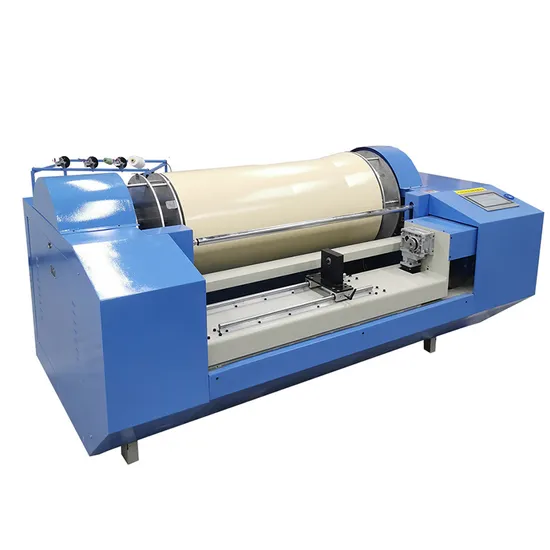

China Sample Split Warper Beam Sampling Machine Lab Single Yarn Warping Machine

Product Description

Product Description
The sample warping Machine supply warping service for product samples s and weaving samples and small batch fabrics in weaving mill,universities and research .There are types:single yarn warping machine and smart sectional warping machine.
They are characterized by high efficiency, precision and material-saving, thereby appropriate to be used in sample production various areas as wool, cotton, chemical fiber, silk, yarn, towels and home textiles products. In addition, they can be applied in sample development by textile laboratories.
Product Parameters

Model	LSW326	LSW328
Width	200-700mm	200-1500mm
Warping speed	0-600m/min	0-300m/min
Yarn count	5~500tex	5~500tex
Warping length	2.4m-3m	5-500mm
Bobbin number	1 pcs (yarn change manually)	6-400pcs(customized)
Warp yarn arrangement	servo motor control, accuracy of 0.01mm reachable
Reverse bear speed	5-100mm stepless speed control
Power supply	3 phase 380V or 220V 2.5kW
Dimension	2000*1100*1100mm

Features
1.Warping device
A. The PLC is used to control the entire machine's mechanical and electrical integrated structure. The PLC, rotary encoder, and servo motor closed-loop online detect the displacement of the yarn during the warping process, ensuring that the accuracy of the warp displacement reaches 0.01mm.
b. The winding of warp yarn adopts an AC variable frequency speed controller, which can detect the winding speed, corresponding winding speed, and yarn changing speed of warp yarn online.
C. The winding of warp yarn adopts a modular design, with a stable and reliable structure and low winding error rate.


2. Reverse beam device
The frequency converter controls the winding speed of the reverse shaft to ensure constant linear speed winding of the warp yarn during the reverse shaft. By using sensors, the winding tension value can be set to ensure even tension of the warp yarn.

Customer Show

Our Advantages
Based on the Digital Textile Technology Research Institute of University of Qingdao, we have developed the whole sample spinning production line and lab weaving line. It is used for teaching research and new product development in textile colleges and scientific research institutions.
Interntional advanced inspection instrument.
Leafs Company devotes itself to control and improvement of products'quality, spent more investment importing international advanced testing and inspection instruments for researching and development of new products and daily inspection of ordinary products.
Company Profile
Packaging & Shipping
We will pack the goods carefully and safely deliver to your hands.
Our express can be sent to various locations and can be delivered. FAQ
Q: How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?
We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q: Is the price offered changeable?
We offer reasonable price for every client, and the price is changeable according to purchasing amount.

Q: How about the quality?
The main structure and raw materials are all supplied by large companies.Key parts are research and developed by our own staff. We have an intelligent manufacturing system.
Q: Are you a manufacturer or Trade Company?
Factory + trade (integration),30 years focusing on textile machine field,More than 10 years exporting experience.
Q: Product /Quality Guarantee and After Sale Service?
12 months warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
