Bba Stainless Steel Coiled Wire Helical Screw Thread Repair Insert Installation Tools Thread Insert Drilling Machinery
Basic Info.
Model NO.
BBA-8441YT
Type
Precision Screwdriver
Voltage
110/220V 50/60Hz
Power Supply Voltage
110/220V 50/60Hz
Automation
Fully Automatic
Power Source
Electricity
Function
Professional, Industrial Assembly/Assembly Line Operations
Condition
New
Customized
Customized
Product Name
Automatic Screw Thread Tightening Machine
Efficiency Size
800*400*400*150mm (X*Y*Z), Can Be Customized
Air Supply
0.4-0.6MPa
Movement Speed
10-500mm/S
Position Accuracy
±0.05mm/Axis
Program Capacitymode
12 Groups, 20 Points Per Group; Can Be Customize
Display Mode
Touch Screen
Motor System
Micro Precision Stepping Motor
Transmission Mode
Precision Toothed Belt+Guide Rail
I/O Signal
RS232
Screwdriver Torque
0.015~2.5n.M (More Than 3.0n.M Customized)
Universal Screws
M4-M10
Work Efficiency
8~10s/PCS
External Machine Size(L*W*H)
185*165*170cm
Transport Package
Export Plywooden Case
Specification
190X170X185 cm
Trademark
BBA
Origin
China
Production Capacity
200sets/Month
Packaging & Delivery
Package Size
190.00cm * 170.00cm * 185.00cm
Package Gross Weight
680.000kg
Product Description

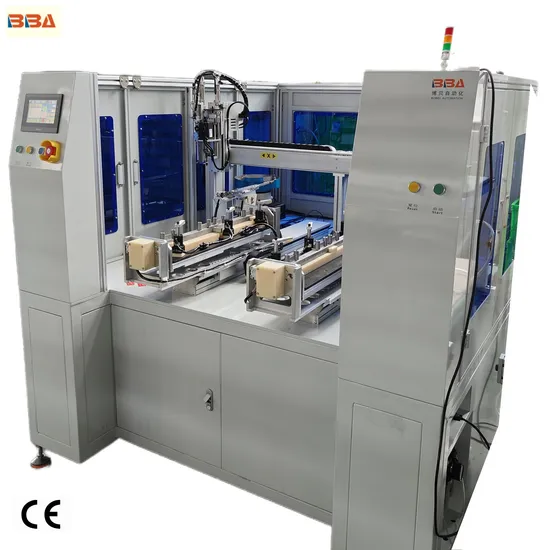

Automatic screw thread tightening machine can tighten the screw thread into the product automatically and quickly, meanwhile to ensure the quality of the product. Adopting the vibrating feeder and direct vibration track for feeding the screws. Using servo motor for screwing and reclaiming, can working in forward and reverse direction. After the screw thread are inserted and tightened, the tread tail are automatically retracted. The functions ofglue dispensing and depth detection can be added. Also can be performed as double screw thread tightening system. Product Description
Machine extenal accessories
Applicable screws
ble screws Specification
| Voltage | AC110/220V 50/60HZ |
| Power | 1000W |
| Stroke | 800*400*400*150mm (X*Y*Z), can be customized |
| Movement speed | 10-500mm/S |
| Position accuracy | ±0.05mm/axis |
| Universal screw thread | M4-M10 |
| Screw thread height | 6-20mm |
| Screw thread material | Copper, Aluminum, Metal, Stainless steel |
| Screw thread type | Self-tapping thread, screw thread, steel thread |
| Transmission mode | Precision toothed belt+guide rail |
| Control panel | PLC+HMI screen |
| Conveying mode | Vibrating plate+direct vibrating track |
| Work efficiency | 6S/pcs (include cutting thread tail), details depends on thread size |
| Air pressure | 0.4-0.6Mpa |
| External port | RS232 |
| Program capacity | 12 groups, 20 points per group; can be customized |
| Work environment | Temperature: 5-40ºC Humidity: 20-90% |
| Weight | 680kg |
| External machine size (L*W*H) | 1850*1650*1700mm |
Packaging & Shipping
