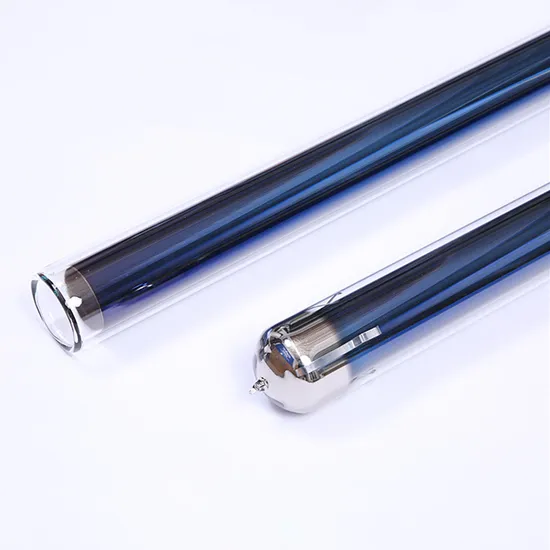

Solar Thermal Vacuum Glass Tubes for Solar Water Heater Parabolic Trough Receiver Tube
| US$1.50 | 3,000 Pieces (MOQ) |
Basic Info.
Model NO.
TSB-001
Certification
ISO, CE
Concentrating
No
Working Temperature Range
High Temperature
Type
Pressurized
Application
Water Heater, Solar Thermal, Air Conditioning System
Pipe Material
Glass
Product Name
Solar Thermal Vacuum Tube
Use
Collect The Solar Energy
Color
Blue/Purple/Black
Craft
Three Target
Size
58*1800mm/58*1920mm/58*2000mm58*2100mm
Liner Diameter
47mm
Shell Diameter
58mm
Liner Thickness
Inner Tube 1.6mm
Shell Thickness
Outer Tube 1.7mm
Appropriate Types
Outdoor/Hotel/Garage/Commercial/Household
Liner Material
High Borosilicate Glass
Transport Package
Carton
Specification
58*1920mm
Trademark
Bessent
Origin
Jiangsu
Production Capacity
800000 Acres Per Month
Packaging & Delivery
Package Size
200.00cm * 8.00cm * 8.00cm
Package Gross Weight
0.500kg
Product Description
Solar Thermal Vacuum Glass Tubes for Solar Water Heater Parabolic Trough Receiver TubeProduct Parameters
| Size | φ58×1800mm/2100mm or as per request | Remarks |
| Material | High Borosilicate glass (3.3W/m.k) | Very high strength and also haselasticity. Three target membrane layers are Stainless Steel-AIN composite (SS-AlNx/Cu) and getter material BALL252FG |
| Heat absorption ratio | 0.90 | |
| Hemispherical emission ratio | 0.05 | |
| Stagnation Temp. | 330ºC | |
| lrradiation, H | 4.1MJ/m² | |
| Heat loss coefficient, ULT | 0.52W/(m²·ºC) | |
| Light Transmittance | 0.92Am² |
