Automatic Construction Portable Concrete Building Wall Dry Mix Shotcrete Machine
| US$1,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PZ5
Machining Process
Mix
Structure
Rotor Type
Productivity
5m3
Feeding Height
20
Vibrating Amplitude
0.8
Certification
CE
Condition
New
Color
Orange
Price Terms
Fob
Minimum Order Quantity
1 Set
Supply Ability
1000 Sets Per Month
Place of Origin
China
Brand
China Coal
Keywords
Dry Shotcrete Machinery
Wheel
Nylon Wheel; Rubber Wheel; Skid Wheel;
Whole Weight
260kgs
Overall Dimension mm
1040X550X940
Transport Package
Wooden Case
Specification
5m3
Trademark
china coal
Origin
China
Production Capacity
1000 Sets Per Month
Product Description

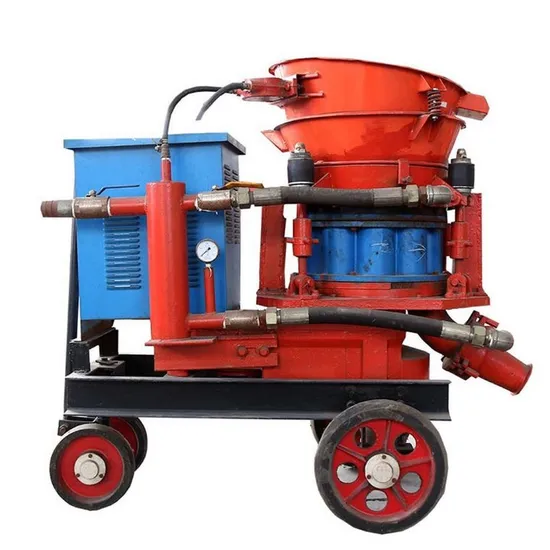

Product Introduction Of Pz-5 Dry Mix Concrete Shotcrete Machine On Sale
1, Advantages: This is a high-effective shotcrete machine, which is mainly used for dry-mix, damp-mix shotcreting and steel fiber reinforced shotcreting.zmwm07
2, Non-adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
3, Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
4, Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Main Parameter Of Pz-5 Dry Mix Concrete Shotcrete Machine On Sale
| Model | PZ-3 | PZ-5 | PZ-7 | HSP-5 | HSP-7 | HSP-9 | |
| Output | 3.5m3/h | 5m3/h | 7m3/h | 4.0-5.0m3/h | 5.0-7.0m3/h | 6.0-9.0m3/h | |
| Max. Convey distance | Horizontal | 200m | 200m | 200m | 30-50m | 30-50m | 30-50m |
| Vertical | 20m | 20m | 20m | 20m | 20m | 20m | |
| Water cement ratio | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | |
| Max. Aggregate. size | Φ20mm | Φ20mm | Φ20mm | Φ15mm | Φ15mm | Φ15mm | |
| Hose inner size | Φ38mm | Φ51.mm | Φ64mm | Φ51mm | Φ51/64mm | Φ51/64mm | |
| Operating air pressure | 0.4~0.6MPa | 0.4~0.6MPa | 0.4~0.6MPa | 0.3-0.6Mpa | 0.3-0.6Mpa | 0.3-0.6Mpa | |
| Air consumption | 3-4 m3/min | 7-8 m3/min | 12-15 m3/min | 10.0-15.0m3/min | 10.0-15.0m3/min | 10.0-15.0m3/min | |
| Rotor diameter | 350(150)mm | 438mm | 480mm | 438mm | 480(160)mm | 480(175)mm | |
| Voltage | 380v or as your requirement | 380v or as your requirement | 380v or as your requirement | 380v or as your need | 380v or as your need | 380v or as your need | |
| Overall dimension mm | 1040*550*940 | 1280*700*1280 | 1600*700*1150 | 1280*700*1280 | 2000*800*1300 | 2000*800*1300 | |
| Whole weight | 550kgs | 600kgs | 900kgs | 700kg | 800kg | 900kg | |
