Guillotine Type Metal Plate Shearing Machine with E21s/ Dac360 Controller

Product Description

Product Description - This device suit to shear various material by different need, main suit to shipbuilding, car made, steel made, switch appliance, contain made, machinery made and light manufacturing and so on. As the major support of shipbuilding and equipment made, and replacement of large hydraulic guillotine shearing machine in time, to suit new requirement, that is very important.
- The device use one-piece steel sheet welded structure, and use vibration age treatment to release internal stress, with good rigidity and stability.
- Hydraulic driven, accumulator return, working is stable, low noise. Through electric system and hydraulic system cooperate in harmony, to get the ideal shearing performance.
- The controller adopts E21S/ DAC360, provides a complete solution for shearing machine

Product Parameters

Model		Unit	QC11Y-20*3200
CNC controller		/	DAC360
Maximum shear thickness		mm	20
Maximum shear width		mm	3200
Sheared steel sheet strength		N/mm2	450
Shearing angle		°	0.5-3
The strokes		min-1	12-20
Blade length		mm	3200
Distance between uprights		mm	3100
Back gauge range		mm	20-800
Main motor	Power	KW	30
	Model	/	Y220L-4B5
	Rotated speed	Rpm	1440
Gear pump	Model	/	CP1-50-P-10R
	Flow	ml/r	50
	Pressure	Mpa	31.5
Gross weight		kg	13000
Overall dimension		mm	3700*1900*2550

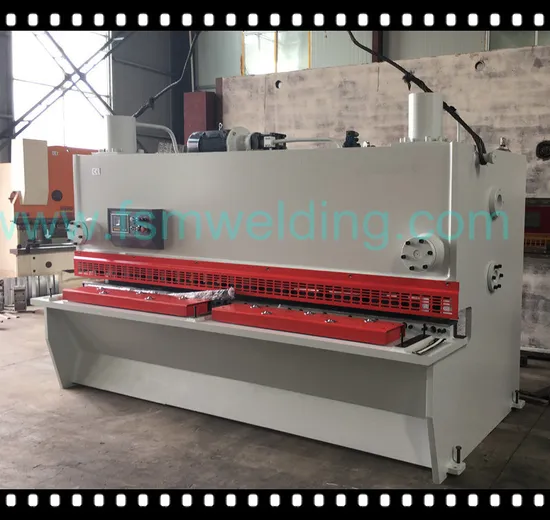

Detailed Photos 20*2000 Guillotine shearing machine
20*3200 Guillotine shearing machine with Estun E21S controller
Guillotine shearing machine + automatic feeding worktable
