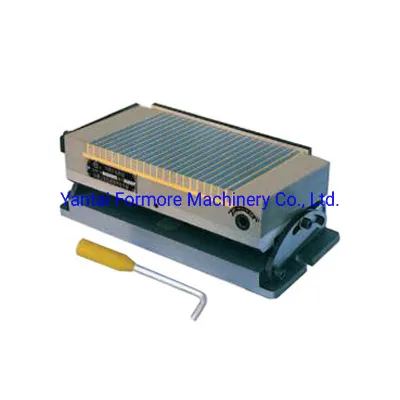

Single Tilting Rectangular Permanent Magnetic Chucks

Product Description

The rectangular permanent magnetic chuck is the auxiliary fitting for various kinds of plain surface grinder,tool-grinder and electromachining machine etc.According to the structure,it can be classified as ordinary permanent manetic chuck,heavy duty permanent magnetic chuck,fine-pole permanent magnetic chuck,single-inclination permanent magnetic chuckand double-inclination permanent magnetic chuck.The rectangular permanent magnetic chucks are used for holding ferromagnetic workpiece for machining.

Type	Length mm	Width mm	Height mm	Tilting angle	Pole pitch mm	Magnetic power N/cm²	N.W. kg
X42 100x175	175	100	100	0~45°	8+2	≥60	10
X42 125x250	250	125	110	0~45°	8+2	≥80	18
X42 150x150	150	150	110	0~45°	8+2	≥80	19
X42 150x300	300	150	110	0~45°	8+2	≥80	30
X42 150x450	450	150	114	0~45°	8+2	≥80	44
X42 200x560	560	200	145	0~45°	8+2	≥80	87

Company Information:
Yantai Formore Machinery Co., Ltd. is located in a beautiful coastal city of Yantai, Shandong, China.We are mainly dealing in machine tools and accessories such as NC Lathes ,Milling Machines ,Drilling machines, Dividing heads,Rotary Tables,NC turret, Scroll Chucks ,Power Chucks, Machine Vices,CNC Tool Holders,Live Centers, etc. also as an agent to export local machine accessories.Besides the exiting products ,we are also willing to develop other new items in this line as per samples or drawings.
Now over 90% of our annual output have been exported to more than 10 countries and regions worldwide.We pay attention to any inquiry and would like to cooperate on business at a long term and dedicate to meet any requirements at most.
If any questions please feel free to contact us.
