Roll Feeding Forming Machine for Paper Cup Cover

Product Description

ZGJ-70 Double Layer Paper Lid Forming Machine
ZGJ-M70 Double Layer Medium Paper Lid Forming Machine
ZGJ-60T Double Layer Paper Super Lid Forming Machine
ZGJ-70R Double Layer Roll Feeding Paper Lid Forming Machine
1.The automatic paper cover forming machine is developed based on the full absorption of the latest Korean and German-style paper cover machines according to the domestic situation. It fully fills the gaps in the domestic paper cover machines and is a patented product of our company.

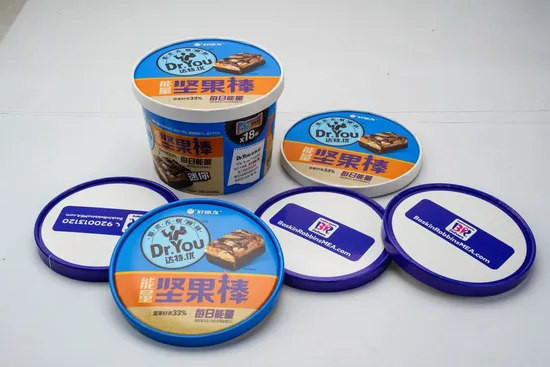

2.The automatic paper lid forming machine is an ideal equipment for producing paper container lids such as paper soup bowl lids, instant noodle bowl lids, coffee cup lids, and ice cream paper cup lids. The automatic paper cover forming machine is easy to operate, stable in performance, small in area, and high in efficiency. It is the first choice for investment and entrepreneurship. Our company accepts custom paper covers of various specifications from customers.
3. Main advantages:
The body is made of high-quality materials with high strength.
The structure runs smoothly, the molding is stable, and the noise is low.
The safety protection system is reliable.
Double cover can put two pieces directly on the machine (the second system device is optional)
Automatic punching (cut roll paper into cover),PLC control + servo motor paper feeding, ZGJ-70R Model
Technical Parameters
Customs code: 8441309000
Paper cover specifications:
height (14-20) mm, ZGJ-70 diameter (65 -125) mm, speed: 60/PCS per minute.
Height (14-20) mm, ZGJ-M70 diameter (100-142) speed: 55/PCS per minute.
Height (14-20) mm, ZGJ-60T diameter (130 -190) mm, speed: 45/PCS per minute.
Height (14-20) mm, ZGJ-70R diameter (65 -125) mm, speed: 55/PCS per minute.
Applicable paper: single and double PE/PLA coated paper, coated paper, glazing coated paper (250-480g/m2)
Power: 6.5kw
Power supply: AC380V 3-phase, 50Hz (can be customized according to customers)
Working air source: air consumption 0.12 cubic meters per minute, working air pressure 0.4MPa
The total weight of the equipment: Paper lid machine .3000KG.
Medium paper lid machine.3000KG.
Paper super lid machine 3500KG.
Roll feeding paper lid machine 3200KG
Paper lid machine packaging size 2350*1700*1850mm
Medium paper lid machine packaging size 2350*1700*1850mm
Paper super lid machine packaging size 2450*1700*1900mm
Roll feeding paper lid machine packaging size 2350*1700*1850mm
