Automatic Drilling Tapping Milling Machine for Faucet Parts and Angle Valve

Product Description

Automatic Drilling Tapping Milling Compound Machine for Faucet Parts,angle valve

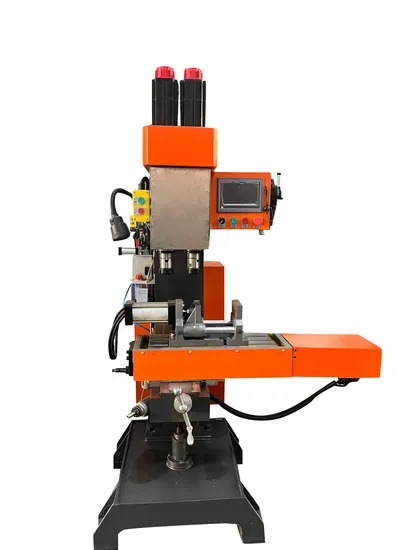

I.Equipment description and pictures1.Two-axis drilling, tapping and milling machine, the main shaft is fed by a screw rod, and a main servo motor drives two-axis machining.
2.High-precision linear gauge table X-axis, digital positioning, high repeat positioning accuracy.
3.CNC system optional
II.Technical Parameter

No.		Specification	2 axis rail line
	Parameter name		ZSK 4132X2C
1	Max stroke of X axis(screw)mm		300mm
2	Max stroke of Y axis(manual)mm		120mm
3	Spindle Sleeve Diameter mm		86mm
4	Spindle taper		NT30
5	Max stroke of drilling spindle mm		100mm
6	Max stroke of tapping spindle		100mm
7	Spindle spacing		120mm
8	Spindle end face to workbench surface mm		310/480mm
9	Max drilling diameter mm		32mm
10	Max tapping diameter mm		32mm
11	Spindle speed(tapping) RPM		3000r/min
12	Spindle motor power kW		3.7kW
13	Dimension L x W x H:		1100*1100*1900
14	Net weight KG		650KG

III.Production workshop
IV.Package and Loading
Quanzhou Yueli Automation Equipment Co., Ltd was founded in 2013, which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on. Quanzhou Yueli Automation Equipment Co., Ltd has developed from a simple assembly manufacturing industry to be a machining manufacturer which collects research and development, production, sales and service. It owns CNC gantry rail grinder machine, boring mill, milling, digging, polishing compound machine and other advanced test equipment. Our company product is from sales, service network throughout the China domestic market. They are exported to foreign countries and regions. We continue to innovate and strive for perfection in our products. We are specialized at quality, focus on the spirit, dedicated service to acquire the perennial support and profound affection from our customers.
If you have any interest, pls feel free to contact at any time.
