10m 12m 14m 16m 18m 20m 22m Hydraulic Articulated Spider Boom Lift

Product Description

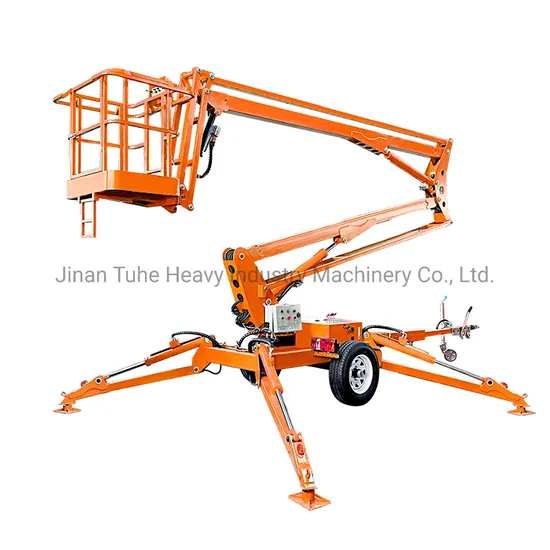

Towable hydraulic boom lift
Trailer boom lift is a hydraulic lifting machine that rotates 360° to lift pedestrians or goods. This lift has the characteristics of convenient movement, simple operation, large working surface and good balance performance. In the case of uneven roads, it can support four legs at the same time or one leg, which is convenient for operation and use, so it is widely used in stations , Docks, public buildings and other industries and fields that need to be engaged in high-altitude operations.

Model	Platform size (m)	Overall size (m)	Lifting height (m)	Load capacity (kg)	Max. work radius (m)	Weight (kg)
THTGZ-8	1.2x0.8	5.2x1.585x1.9	8	200	4.5	1500
THTGZ-10	1.2x0.8	5.2x1.665x1.9	10	200	5	1700
THTGZ-12	1.2x0.8	6.4x1.585x1.9	12	200	6	2000
THTGZ-14	1.2x0.8	6.4x1.73x2.1	14	200	8.5	2350
THTGZ-16	1.2x0.8	7.0x1.73x2.2	16	200	9	2600
THTGZ-18	1.2x0.8	7.1x1.85x2.26	18	200	10	4300
THTGZ-20	1.2x0.8	7.7x1.85x2.26	20	200	12	4450

Matters need attention:
1. The outriggers must be supported before work.
2. When the lift is in use, the work surface should be level.
3. During the lifting process of the machine, personnel are strictly prohibited from climbing.
4. Overloading is strictly prohibited during use and the contents should be properly placed.
5. The lubricating oil used should be kept clean and must not be mixed with water and other impurities. It should be replaced every 3-6 months.
6. When the maintenance or failure occurs, the power supply should be cut off in time.
7. No overloading.
FAQ:
1. What 's our delivery time?
Normally we have inventory of the standard products, if not, we need 7-10 days to produce the standard products and 10-15 days for the customized products.
2. What's our guarantee?
We have one year guarantee period for you, during this time, we can provide you with non-human damaged parts for free. And we 24h provide online service.
3.Do we accept customization?
Sure, we can customize a product according to your requirements. And we can do OEM&ODM for you.
4. Why should you buy from us not from other suppliers?
We are professional in producing the hydraulic lift equipment for logistics, warehouse, factory and construction using. We are a large-scale lifting platform manufacturing enterprise integrating R&D, production and sales.
5. What's our MOQ (minimum order quantity)?
It is one unit. But we have a good discount if you order more.
