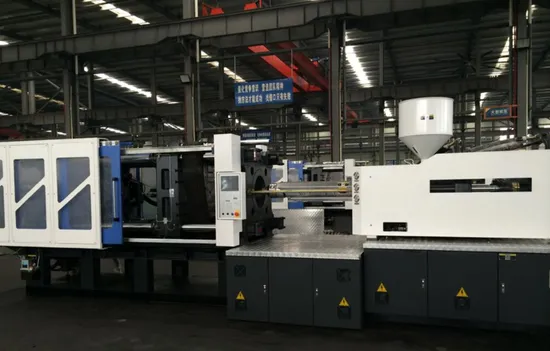

Pet Preform Plastic Bottle Injection Molding Machine

Product Description

PET Preform Plastic Bottle Injection Molding Machine

Model	Injection Weight	Tie bar Space	Model	Injection Weight	Tiebar Space
U98TS	125 g	365*360 mm	U508TS	2000 g	805*715 mm
U118TS	160 g	380*380 mm	U590TS	2500 g	845*830 mm
U140TS	200 g	420*420 mm	U680TS	3000 g	915*915 mm
U158TS	250 g	430*430 mm	U780TS	4000 g	985*985 mm
U168TS	320 g	467*467 mm	U1080TS	5800 g	1160*1160 mm
U178TS	400 g	485*465 mm	U1280TS	7700 g	1260*1260 mm
U218TS	500 g	510*510 mm	U1680TS-1	9000 g	1555*1430 mm
U238TS	630 g	530*530 mm	U1680TS-2	20000 g	1555*1430 mm
U265TS	800 g	585*565 mm	U2200TS-1	12000 g	1650*1500 mm
U285TS	900 g	610*585 mm	U2200TS-2	25000 g	1650*1500 mm
U368TS	1000 g	645*645 mm	U2800TS	35000 g	1900*1800 mm
U400TS	1250 g	745*705 mm	U3400TS-1	40000 g	2200*2200 mm
U438TS	1600 g	765*765 mm	U3400TS-2	50000 g	2200*2200 mm

U438TS	Unit	A	B	C
INJECTION UNIT
SCREW DIAMETER	mm	75	80	85
SCREW L/D RATIO	L/D	23.5	22	20.7
SHOT VOLUME(THEORETICAL)	cm3	1727.1	1965	2218.3
INJECTION PRESSURE	Mpa	155.9	137	121.4
SCREW SPEED	rpm	194
SHOT WEIGHT(THEORETICAL)(PS)	g	1572	1788	2019
SHOT WEIGHT(THEORETICAL)(PS)	oz	55.451	63.07	71.218
CLAMPING UNIT
CLAMPING FORCE	Kn	4380
OPEN STROKE	mm	740
SPACE BETWEEN TIE BARS(W*H)	mm	765*765
MAX.MOULD HEIGHT	mm	780
MIN.MOULD HEIGHT	mm	280
EJECTOR STROKE	mm	170
EJECTOR FORCE	Kn	90
EJECTOR NUMBER		12+1
DIE HOLE DIAMETER	mm	200
OTHERS
SYSTERM PRESSURE	Mpa	16
MOTOR POWER	Kw	45
HEATING POWER	Kw	33.6
OIL TANK CUBAGE	L	750
MACHINE WEIGHT	Ton	18
BOUNDARY DIMENSION(L*W*H)	m	7.55*1.9*2.53
SERVO DRIVER CAPACITY	Kw	22+45

1.. Which countries do we export to?
Asia: Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan, etc.
Europe: Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.
South America: Brazil, Chile, Paraguay, Argentina, etc.
Africa: South Africa, Ethiopia, Libya, Ghana,Algeria,etc.
2.What are our advantages compared with other manufacturers/factories?
1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts,like engines,bridge,transmissions,and many parts designed and produced by ourselves,
always adapting the best materials.
2)Competitive Price: Concentration of mechanized production in large quantities reduce
production cost to ensure that our price is competitive.
3)Service Team: First, our sales managers are online 24 hours,ready to answer your
questions at any time. Second, professional maintenance team with senior technicians,
ready to provide support services to users and dealers. Most problems can be solved
within 24 hours.
4)Fast Delivery:Under normal circumstances,we can delivery with 10 working days in
factory after receiving pre-payment.
3.Which payment terms can we accept?
Normally we can work on T/T or L/C.
1)On T/T term, 30% payment is required in advance for production, 70% balance shall
be paid before delivery or against the copy of original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight without "soft clauses" can be accepted.
4. How long is the validity of our quotation?
As a reliable supplier, basically our price remains stable through one month.
Other questions, please contact me directly!!
