3200kg-4 European-Style Low Headroom Type Electric Chain Crane Hoist

Product Description

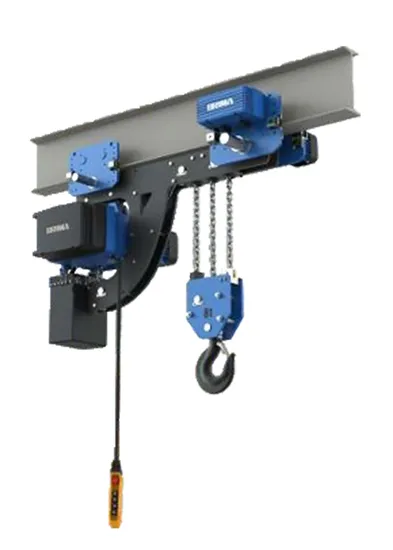

3200Kg-4m/min European-Style Low Headroom Type Electric Chain Hoist

Low headroom chain hoist is a lifting equipment suitable for environments with limited space.
Its structural design is unique.
It is in a "bow" shape. The electric trolleys at both ends and the hoist motor are moved to both sides.
The structure is compact and reduces the requirement for space height.
The working principle is similar to that of ordinary chain hoists.
The rotation of the sprocket driven by the motor realizes the lifting and lowering of heavy objects.
It has obvious advantages. It can improve space utilization. In low places, it can save about 30% of vertical space. It has good lifting performance. The lifting capacity ranges from 0.5 tons to 10 tons. The lifting height can be customized. The operation is flexible and convenient. It is equipped with a variety of protection devices and is safe and reliable.

It has a wide range of application scenarios.
In the industrial production field, in factory workshops and warehouses, it can be used for equipment installation, maintenance, and cargo handling and loading and unloading.
In the field of construction, in basements, low-rise buildings, etc., it can be used for material hoisting and component installation. It can also be applied to places such as docks, logistics centers, and mines.

Model	Lifting Weight (kg)	Lifting Speed Two Speeds	Numbers Of Chain	Working Lever FEB/ISO
BMS0.25-8-4-01ML	250	8m/min 2m/min	1	2m/5M
BMS0.5-8-2-01ML	500	8m/min 2m/min	1	2m/5M
BMS01-4-4-02ML	1000	4m/min 1m/min	2	2m/5M
BMS01-8-4-01ML		8m/min 2m/min	1	2m/5M
BMS02-8-4-01ML	2000	8m/min 2m/min	1	2m/5M
BMS02-4-4-02ML		4m/min 1m/min	2	2m/5M
BMS2.5-8-4-01ML	2500	8m/min 2m/min	1	2m/5M
BMS3.2-4-4-02ML	3200	4m/min 1m/min	2	2m/5M
BMS05-4-4-02ML	5000	4m/min 1m/min	2	2m/5M
