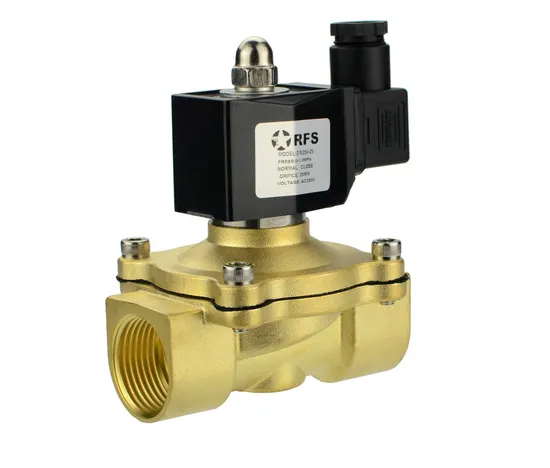

2W 2 Way Direct Acting 2/2 Normally Closed Nomal Open Waterproof Solenoid Pneumtaic Water Air Liquid Oil Brass Stainless Steel Small Big Orifice Control Valve
Basic Info.
Model NO.
2W160-08
Actuator
Electric
Connection Form
Thread
Type
Direct Acting
Material
Brass, Stainless Steel
Pressure
Ordinary Temperature, Ordinary P0~0.7MPa, 0~2.0MPa
Valve Structure
Direct-Acting Piston Structure
Power Supply
AC Solenoid Valve, DC Solenoid Valve
Usage
Flow Control
Standard
DIN
Application
Industrial Usage, Water Industrial Usage
Model
2W-160-15
Pattern
Normally Close
Orifice
16mm
CV Value
4.8
Connection Ports
1/2′′
Working Pressure
0-0.7MPa
Max.Pressure
1.0MPa
Working Temp
-5~80degree
Rated Voltage
DC12-24V/AC24V-380V
Power
DC23.4W/AC26va
Valve Body Material
Brass/Stainless Steel
Seal Material
NBR/EPDM/FKM
Transport Package
One PC Solenoid Valve Packed in One Box
Specification
CE. EMC, SAFETY, UL etc
Trademark
XINGYU
Origin
Ningbo, China
HS Code
8481804090
Production Capacity
10000PCS Per Month
Product Description
Waterproof Solenoid Valve (2W-160)SpecialityDirect acting,diaphragm structure,can be work at zero pressure,expanding the using area.
Plate diaphragm structure,high reliability,long life;
Valve body can be made from brass and stainless steel;
Plastic encapsulating coil,be able to use under numerous environment;
Ordering code
Parameter
| Model | Media | Working Type | Pattern | Orifice (mm) | CV Value | Connection Ports | Fluid Viscosity | Working Pressure (Mpa) | MAx Pressure (Mpa) | Working Temp (ºC) | Rated Voltage | Power | Valve Body Material | Seal Material |
| R2W160-10 | Air Water Oil | Direct Action | Normally close | 16 | 4.8 | 3/8'' | <20CST | 0-0.7 | 1.0 | -5~80 | DC12-24V AC24V-380V ±10% | DC23.4W AC26VA | Brass Stainless Steel | NBR EPDM VITON |
| R2W160-15 | 16 | 4.8 | 1/2'' | |||||||||||
| R2W200-20 | 20 | 7.6 | 3/4'' | |||||||||||
| R2W250-25 | 25 | 12 | 1'' | |||||||||||
| R2W350-35 | 35 | 24 | 1 1/4'' | |||||||||||
| R2W400-40 | 40 | 29 | 1 1/2'' | DC40W AC50VA | ||||||||||
| R2W500-50 | 50 | 48 | 2'' |
Overall Dimension
| Model | A | B | C | D | K |
| R2W160-10 | 97 | 57 | 110 | 66 | G3/8 |
| R2W160-15 | 97 | 57 | 110 | 66 | G1/2 |
| R2W200-20 | 106 | 57 | 115 | 70 | G3/4 |
| R2W250-25 | 106 | 73 | 122 | 99 | G1 |
| R2W350-35 | 136 | 90.5 | 167 | 124 | G1-1/4 |
| R2W400-40 | 136 | 90.5 | 167 | 124 | G1-1/2 |
| R2W500-50 | 151 | 124 | 186 | 164 | G2 |
Company information
Xingyu Electron(Ningbo)Co.,Ltd. is one of the key enterprises in Chinese pneumatic and valve industry,We specialize in development,manufacturing, marketing and service of pneumatic actuator,angle seat valves,solenoid valves,solenoid coils and DIN connectors;
"Not to be the biggest,but to be the strongest" is our business goal and ideal,let us make best efforts for a better future.
Brief Introduction:
--Approx 30 years' experience in manufacturing solenoid coils;
--Started to make solenoid valves & pneumatic actuators since 2004;
--ISO 9001 and IATF16949 certificated company;
--Main products: pneumatic actuator, Angle seat valves, Solenoid valves, solenoid coils,
Digital pressure switch, Vacuum generator, E/P regulator;
--Application: Pneumatic & Hydraulic industries, fluid control system,
air and water treatment system, Automatic industry, etc;
FAQ
Q:Are you a trading company or a factory?
A: We are a factory, manufacturer solenoid coils since year 1990.
Q:After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty ?
A: Normally it is guaranteed for 12 months since dispatching from factory
Q: Can you customized the products?
A: Yes, we have professional R&D team, we supply customized products to customers
