1.8t Crawler Excavator with Famous Engine

Product Description

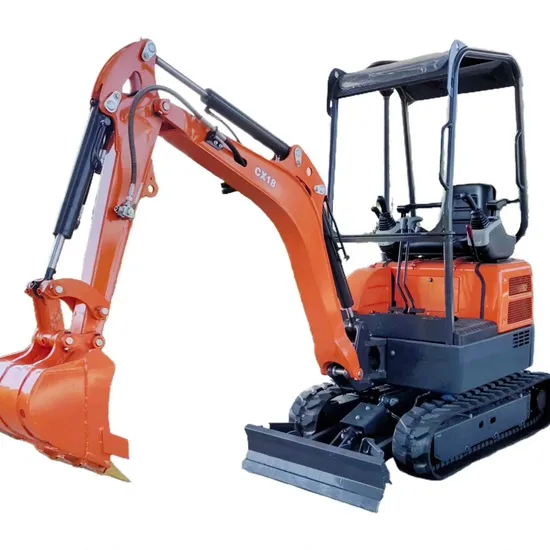

CX18 Efficient Mini Excavator with Yanmar 14.6KW Diesel Engine
Featuring a zero-tail-swing design and retractable undercarriage, the ultra-capable yet compact CX18 squeezes more work out of areas where you would normally need a shovel.
Load-sensing hydraulics provide smooth control. Plus its two-speed travel with automatic shifting and small size make this excavator quick and maneuverable, so you can easily move on to the next job.
Application scenarios:

Application scenarios:

1,Construction Sites: Mini excavators are commonly used construction equipment. They can be used for excavating foundations, digging trenches, laying pipelines, and clearing and leveling construction sites.
2,Civil Engineering: In civil engineering projects, mini excavators can be used for excavation and clearing of earthworks, creating water channels and drainage ditches, repairing roads and railways, and shaping landscapes.
3,Agriculture: Mini excavators are highly useful in agricultural activities. They can be used for installing irrigation systems, land leveling, constructing drainage channels, and clearing agricultural fields.
Specification

Specifications:

Machine Dimensions
Arm Length		940 mm
Overall Length		3584 mm
Overall Height		2362 mm
Overall Width (over tracks)
Minimum		990 mm
Maximum		1300 mm
Tail-Swing Radius		660 mm
Tumbler Distance		1223 mm
Overall Length of Crawler		1251 mm
Counterweight Clearance		448 mm
Overall Height (to top of cab)		2362 mm
Ground Clearance		156 mm
Overall Width of Upperstructur		980 mm
Track Gauge		760 mm
Shoe Width		230 mm

Operating Dimensions
Arm Length		940 mm
Maximum Reach		3899 mm
Maximum Reach at Ground Leve		3848 mm
Maximum Digging Depth		2326 mm
Maximum Cutting Height		3462 mm
Maximum Loading Height		2436 mm
Minimum Slew Radius		1372 mm
Maximum Vertical Wall Digging Depth		1713 mm
Tail-Swing Radius		660 mm
Engine type		Japanese brand Yanmar 3TNV74,Euro 5 emission
Engine power		13.8KW
Operation Weight(Kgs)		1780kg
Bucket capacity		0.05m³
Arm rotatable or not		Rotatable
Operating system		Pilot operation
Chasis		Undercarriage Vinyl seat (canopy only)
Walking Motor		Hinged service-access doors Alternator, 55 amp

Detailed Photos

Detail Picture:

SMOOTH CONTROL
Load-sensing hydraulicsystem efficiently managespower for multiple functions ,delivering smooth machinecontrol with less effort.
SIMPLIFY SERVIC
ELarge door allows wide-open,ground-level access to dailycheckpoints,for fast service.Grease fittings are also withineasy reach.

GET IN CLOSE
Zero-tail-swing design letsthe operator rotate themachine in tight spaceswithout worrying about hittingwalls or obstacles .
DIG AND GO
Two-speed travel withautomatic shifting providesfaster transport speedsacross large work areas or tothe next job.

BUILT TOUGH
Boom cylinder is positioned abovethe boom where it's betterprotected from impact.Durabletight-fitting steel bushings areeasily interchangeable ,furtherminimizing downtime .
EASY FIT
Variable-width undercarriage canbe hydraulically retracted toaccess tight quarters wherehandwork was once required, theneasily extended to provide a stableworking platform.
Package and sample

Exhibition

Certifications
Factory

Hot Products

CX10T	CX11A	CX11B
CX12	CX12-3	CX12-5
CX12-6	CX18	CX20

FAQ

1. Do you guarantee safe and secure delivery of products? Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

2. Can you supply the relevant documentation? Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

3. What is the average lead time? For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when we have received your deposit, and we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
