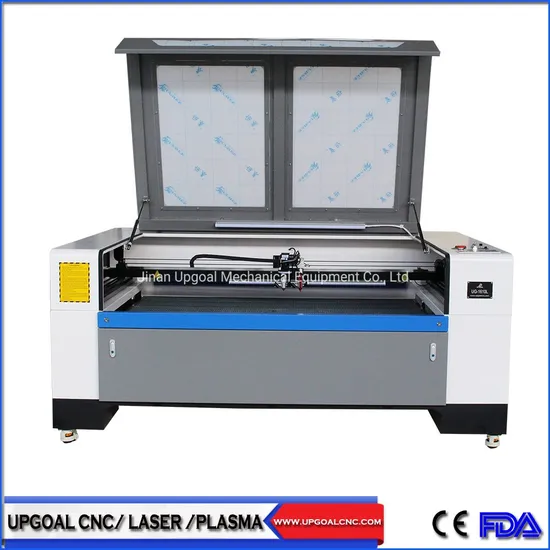

Dual Head 130W+90W CO2 Laser Engraving Cutting Machine with CCD 1600*1000mm

Product Description

Dual Head 130W+90W Co2 Laser Engraving Cutting Machine with CCD 1600*1000mm

Features

CCD Camera
Machine with RUIDA CCD Camera auto positioning, can do visual positioning, trademark cutting, image analysis. support feature recognition position positioning and MARK point auxiliary position positioning function, improves the working efficiency.
Multi-graphic positioning and cutting at any angle, automatic identification of defective products, can achieve the effect of cutting along the edge, no yellow, no black, no burn, multiple graphics positioning and cutting at the same time.
Laser Head
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.Equipped with dual laser head,much improve working precision & efficiency.
Laser Tube
Adopted high quality Reci brand W6 130W+ W2 90W dual Co2 laser tube, long working time time and stable

Working Table
Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.
Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality
Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 200mm up-down distance.
Motion System
Imported High precision, low friction force and stand wear and CSK Taiwan linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise
Driving system
Adopt Leadshine/Yako three phases stepper motor driver, powerful and high precision.
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Operation System
Advanced USB port RuiDaRDV6445G small vision laser cutting engraving control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Cooling System
Industrial chiller CW-5202(S&A), ensuring the laser tube long time continuous working.
Blow- off system
Air pump and air blower for laser head & machine blow-off

Rotary axis

Optional chuck & Roller type for cylinder engraving
Technical Parameters

Effective working area	1600*1000mm
Laser Type	Co2 sealed-off laser tube
Laser tube power	A1: Reci W6 130W A2: Reci W2 90W
Working table	Honey comb and knife strip double working table
Lifting table	Automatically up and down 200mm
Focusing	Auto
Driver mode	3 phases stepper motor and Driver, Yako brand
Guide rail	Linear square guide rail ( CSK,Taiwan)
Transmission	Belt transmission
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	RuiDa RDV6445G small vision laser cutting engraving control system
CCD camera	RuIDa SV300, USB port
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Industrial chiller CW-5202( S&A) cooling
Water protection system	Yes
Focus	Auto focus
Blow-off system	Air pump and air blower
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage	AC 220V/110V, 50/60Hz, single phase
Certificate	CE/FDA

Applications
Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.
Widely applied in the field of advertising industry, decoration, furniture, model manufacturing, and handcraft industry for the fine engraving, cutting and hollowing out on almost all non- metallic materials with all kinds of characters, graphs, images, trademarks and so on.
Materials Can work with: Organic glass, acrylic board (the paulownia, lightwood), wood products, bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.
