Handheld Bottle Liquid Detector for Airport Liquid Security Inspection and Detection

Product Description

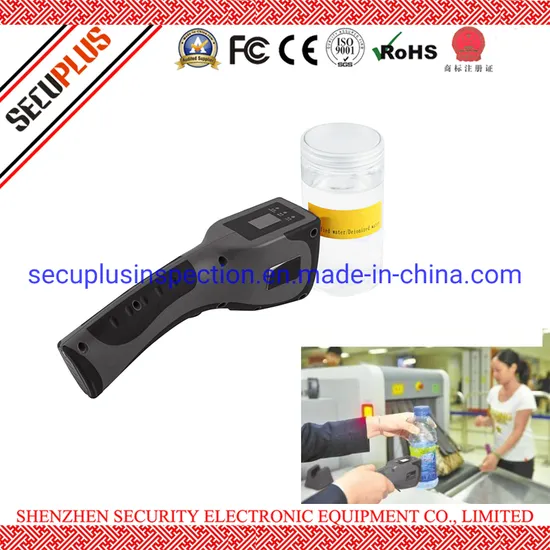

Handheld Bottle Liquid Detector for Airport Liquid Security Inspection and Detection SPL-1500 is a portable bottle liquid explosive detector to Identify chemical composition of liquids, which is sealed in bottle or can, small size, high speed analysis, easy to operate, No radiation, harmless to people and test sample
Applications: Control access security of airport, train station, subway, gymnasium,
important government office, boarder, and seaport and so on.
Product Features:
1. Quasi-static computed tomography to define the object inflammable and explosive through measuring liquid dielectric constant and conductivity
2. Touch less detection of hazardous liquids
3. The device is equipped with automatic shutdown function which can be activated by the press of a button
4. The detector does not contain ion, radiation and other potential dangerous elements, it is safe and harmless to the operator
5. For security inspection, fire hazard detection
Technical specification:

General Specifications
Identify dangerous liquid	More than 30 sorts: Gasoline, kerosene, diesel oil , hydrochloric acid , sulfuric acid , nitric acid , sodium hydroxide , potassium hydroxide , isopropyl ether , petroleum ether, propionaldehyde, benzene,carbon disulfide, hexane, isopropanol, nitromethane, diethylamine , tris the trihalomethanes , ethylene glycol, xylene and other flammable, corrosive liquids
Component	The host and the charging base
Limited material of bottle	can Iron, aluminum, plastic, glass, porcelain, china, pottery.
Limitation of bottle	Bottle size no less than: 5.5cm*1.5cm, capacity no less than 50ml.
Data storage	No less than 1000times test results are saved automatically. USB port available to load down the data
Alarm for dangerous liquid	Red LED alarm light & long beep
Single for safe liquid	Green LED light & short beep
Power on time	1 second
Identify time Metal container:	within 8 seconds
Other container:	with 1 second
Out size	216*50*79mm(L*W*H)
Weight	<200g (with battery)
Temperature of container	5-35ºC
Storage temperature / humidity	-40ºC to 60ºC / 5% to 95% humidity
Working temperature / humidity	'15ºC to 35ºC / 5% to 95% humidity
Power Voltage/ frequency	AC180-240V(50/60Hz)
Power consumption	10W

RFQ:
Are you manufacturer?
Yes, we are professsional manufacturer of security threats detection system in south of China.
Stable quality and foremost service always be the key that we focus on.
How many days we can get the machine after payment?
Normally, with stock only need 3-5 days for leading time.
Without stock, need 10-15 days to manage the production.
Delivery by sea, air for your choices.
How about the warranty and services?
Provide one year warranty and lifetime technic support.
Accept to send our engineer to your country for training in additional cost.
Free training one-on-one in our factory for free.
