Wood Sawdust Press Machine for Pellet

Product Description

1-1.5T/H wood Pellet Machine-HX560-132KW Introduction
3-3.5 T/H wood pellet machine-HX850-200KW
Raw Material:Wood sawdust,rice husk,
Raw Material moisture:10%-20%
Voltage and Frequency: 380V 50Hz, 3 Phase,or 440V,60Hz,or customized

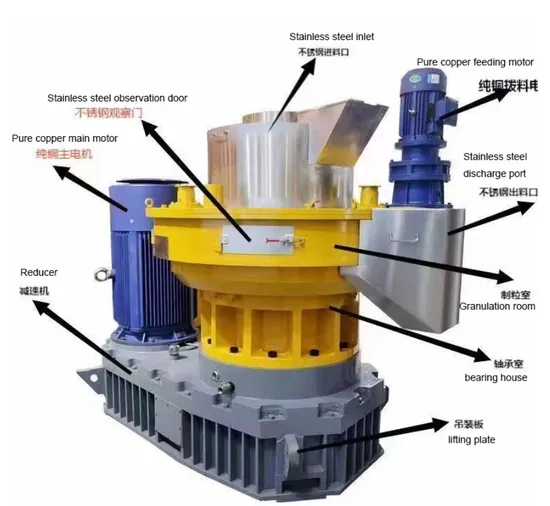

Main machine picture:
Features: 1,Wood pellet machine can produce a variety of wood chips, straw, husk and other raw materials based biomass particles;
2,The use of cold pressing molding, extrusion molding and other molding technology, grease polishing polishing process makes biomass particles beautiful appearance, more compact structure;
3,Wood pellet machine high output, low energy consumption, low noise, low failure, machine fatigue resistance, continuous production, economic and durable.
4,The whole machine is made of special high-quality materials and advanced shaft transmission device, and the key components are made of high-quality alloy steel and wear- resistant materials;
5,The wood pellet machine mold is placed flat, the mouth is upward, and it is directly into the granulation mold from top to bottom;
6,The proportion of wood chips is very light, straight up and down, the sawdust into the press wheel rotation to the four sides, uniform compression particles;
7, wood pellet machine is upward open, easy to heat, in addition to a set of air-cooled cloth bag dust, automatic refueling;
8, wood pellet machine is a hard enlarged shaft, large cast steel bearing seat, its large bearing does not bear any pressure, not easy to break, long life.
Machine list:

Screw Conveyor Feed in Sawdust Screw conveyor:Model:HX560-SC, Power:2.2KW,weight:0.3 ton,Dimension:5000*400*500mm send sawdust into pellet machine
	Vertical Ring Die Wood Pellet Machine Model:HX560 Capacity:1-1.5 t/h Power:132+1.5+0.37 kw Weight: 5.5 tons Dimension: 2500x1300x2100(mm) Making wood pellet 6~10mm diameter.
Automatic Grease Pump Model:HX-560-2 Power:0.37(kw) Weight: 0.1 ton Dimension: 600x500x600(mm) Lubricate roller, shaft and bearing
	Dust Remover Collecting the dust Model:HX560-2 Power:3(kw) Weight: 0.3 ton Dimension: 800X800X3500 (mm)
Electrical Control Panel Including the contactor, breaker, motor protector, lose phase protecting, amp meter, voltage meter.... Start-up for wood pellet machine.
	double layer ring die, one ring die can be using 2 times by turn it over, cut down operating costs. The roller skin is professionally carburized and has higher wear resistance.
Vertical ring die fixed, roller rotating, with centrifugal force, making the materials evenly distributed around inside the die, also the centrifugal force will help improve the capacity.

3 sets group picture with a sawdust silo
