Ultrasonic Hardness Tester with Motorized Probe for Cast Aluminum Alloys

Ultrasonic Hardness Tester with Motorized Probe for Cast Aluminum Alloys

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
SU-300M
Application
Metal, Plastic, Ceramics and Glass
Standard
ISO, ASTM, GB/T
Warranty
1 Year
Mobility
Portable
Calibrating Method
Standard Hardness Test Blocks
Rated Voltage
220V
Support Language
English
Customized
Customized
Loading Force
2kgf(Optional: 1kgf, 5kgf, 10kgf)
Impact Device
D (Optional: DC/D+15/Dl/G/C/E)
Certification
Ce
Transport Package
Carton
Specification
CE
Trademark
SINOWON
Origin
Guangdong, China
HS Code
9024102000
Production Capacity
20PCS/Month

Product Description

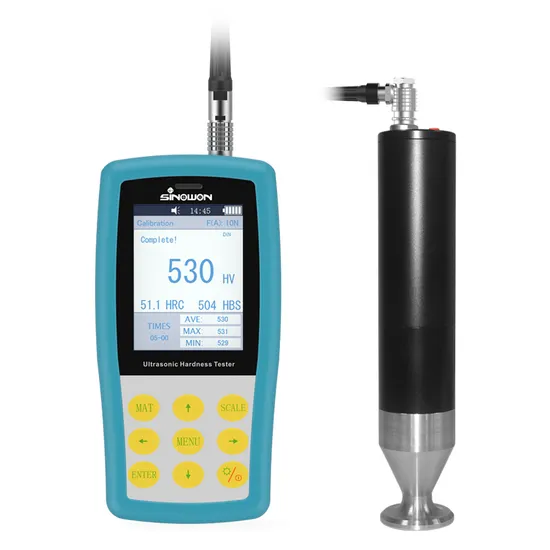

SU-300M Introduction: SU-300M Motorized Ultrasonic Hardness Tester is a popular portable durometer made by Sinowon group. It applies method of ultrasonic contact independence to make hardness testing at the spot or in the laboratory. SU-300M is a perfect portable durometer for hardness testing about the coating and plating, it can measure the hardness of chrome, copper plating, carburized layer andNitriding layer effectively. SU-300M is a NDT durometer due to the contact indention is too small to observe, it is one of the excellent solution totest hardness of finished products, such as, the mold, gear, shaft, rod, screw, rails, etc. SU-300M can not only work with the motorized probes, but also work with the manual probes, which is able to meet the different application in light of different condition of surface roughness. SU-300M conformsthe standard ASTM A1038-2005, DIN standard DIN50159-1-2008 and China National standard GB/T 34205-2017. Characteristics: Perfect Accuracy--±3% HV, ±1.5HR, ±3%HB. Microscopic Indentation Quick Measurement--Result in 2 seconds.Large LCD Display Friendly Operation--Operate well after short training. Mass Storage--Save 1000 groups measurement data.
Specifications:
Commodity Ultrasonic Hardness Tester
Model SU-300M
Code# 882-141M
Optional probe Manual Probe:10N,20N,49N,98N ;Motorized Probe:3N,5N,8N,10N
Measuring Range (DIN) HBS:100-500; HV:100-1500; HRC:20-68; HRB:55-100; HRA:37-85; Mpa: 255-2180N/mm
Measuring
Accuracy(%)
Scales <250HV 250~500HV 500~800Hv >800HV
HV0.1 6 7 8 9
HV0.3 6 7 8 9
HV0.8 5 5 6 7
HV1 5 5 6 7
HV5 5 5 5 5
HV10 5 5 5 5
Hardness Scales Vickers(HV);Rockwell C(HRC); Rockwell A(HRA); RockwellB(HRB);Brinell(HB)
LCD Color Screen
Data Display LCD Backlight, Adjustable
Language Chinese, English, German, Portugese, Turkish
Data Output RS232 Hyper Terminal/Bluetooth Printer
print Bluetooth
Data Storage To save 1000-groups of measuring data and 20-groups of calibration data
Word input Letters and numerals
Working Environment Temperature: -10°C to 50°C ; Humidity :30%-80% R.H.
Battery Voltage Rechargeable lithium battery ; Voltage :4.2V, 4800mAh
Recharger Voltage AC220V/50Hz, 110V/60Hz
Main unit Dimension and Weight Main unit Dimension :160 x 80 x 30mm (L x W x H);Manual Probe:Φ22×153mm ; Weight(No Probe): 0.5Kg
Packing Dimension and Weight Packing Dimension 320 x 430 x 155mm (L x W x H) ; Packing Weight (Standard Delivery)4.3Kg

Standard Delivery:
Commodity Code # Commodity Code # Commodity Code #
Instrument Main Body 882-141M 10N Motorized Probe 882-251 Anti Vibration Case 882-901
Standard Rockwell Block 882-641 Probe Cable 882-801 Screw 882-951
USB Recharger 882-851 COM Cable 882-810 Operation Manual SU-300M
Qualification Certificate SU-300M Packing List SU-300M Warranty Card SU-300M
