RoHS Approved Linear Control Machinery CNC Lathe Milling Center Machine Cks6180-1500

Product Description

Company Profile
Suji Intelligent Equipment Jiangsu Co., Ltd. was established in 2018, which is located in Jiangsu Shuyang National Economic Development Zone. Mainly engaged in CNC machine tools, vertical machining center, development, production, research and development, sales and service as one of the comprehensive science and technology enterprises. The company has a professional technical team dedicated to the field of CNC machine tool manufacturing and service, set many years of professional CNC machine tool research and development and manufacturing experience, with exquisite technical force, advanced processing and testing equipment and scientific management, to provide you with more cost-effective machine tools, so that your investment is more valuable.
Major products: vertical machining center series, horizontal machining center series, gantry machining center series and flat rail CNC lathe, inclined rail CNC lathe machine tools with high speed, high rigidity, high performance, high efficiency, is the communication, consumer electronics, medical industry, LED industry, automobile, aerospace industry and other industries the first choice of machine tool equipment.
Our company has a strong research and development ability and many years of manufacturing experience, and has passed the ISO9001 quality system certification.
Quality and service is the foundation of the enterprise, "create value for customers, create opportunities for employees, create benefits for the society" is we have been adhering to the business philosophy, "professional service, sincere to true" is our service concept, to improve the customer service system to provide customers with high quality quality and pre-sale, sale, after-sales service and professional technical support is our mission. To meet the needs of our customers and markets, we hope to develop together with all our partners, and create a better tomorrow!
Product Description

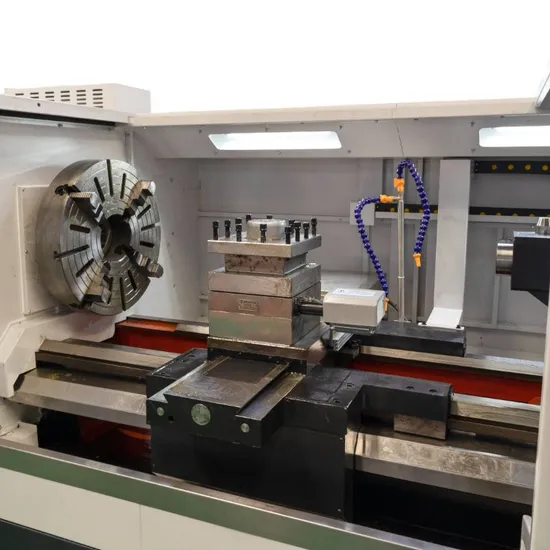

Detailed Photos
Quality Control

Product Parameters

Specification/Model		CKS-6136	CKS-6140	CKS-6150	CKS-6163	CKS-6180	CKS-61110
CAPACITY	Max.swing over bed	φ360mm	φ400mm	φ500mm	φ630mm	φ800mm	φ1000mm
	Max.swing over carriage	φ210mm	φ240	φ280mm	φ350mm	φ480mm	φ680mm
	Max Cutting length	500/750/1000	750/1000	750/1000/1500/2000mm	1000/1500/2000	1000/1500/2000/3000	1500/3000
Rail width	Rail width	330mm		400mm	550mm	600mm	660mm
SPINDLE	Spindle nose	A2-6		A2-8	C-11	C-11	C-11
	Spindle bore	φ60mm		φ82mm	φ100mm	φ104mm	φ130mm
	Taper of spindle	MT6		Metric 1:20	Metric 1:20	Metric 1:20	Metric 1:20
	Chuck	8"		φ250mm	φ325mm(Three Claw)	φ325mm(Three Claw)	φ325mm(Three Claw)
	Spindle Speed	150-2000rpm or 2 gears 60-600/280-2000 rpmm		150-1600rpm or 3 -gears 30-150/100-500/600-1600 rpmm	14-175/40-500/100-500/100-1000rpm	40-125/110-350/290-950rpm	40-125/110-350/290-950rpm
FEEDS	X-axis travel	210mm	230mm	295mm	400mm	470mm	470mm
	Z axis travel	500/750/1000/1500		750/1000/1500/2500	830/1350/1850mm	1200/1650/2200/3200mm	1200/1650/2200/3200mm
	X/Z Rapid speed	4/7m/min		6/8m/min	4/8m/min	4/8m/min	4/8m/min
Repeating Posistioning Accuracy	X/Z	X≤0 . 0075mm Z≤0 . 010mm		X≤0 . 0075mm Z≤0 . 010mm	X≤0 . 0075mm Z≤0 . 010mm	X≤0 . 0075mm Z≤0 . 010mm	X≤0 . 0075mm Z≤0 . 010mm
CABBIAGE	Stations of turret	4/6/8		4/6/8	4/6/8	4/6/8	4/6/8
	Max.section of tool	25x25mm		25x25mm	32x32mm	40x40mm	40x40mm
TAIL STOCK	Stroke of tailstock sleeve	120mm		150mm	250mm	250mm	250mm
	Diameter/Hole of tailstock sleeve	φ55mm/MT4		φ75mm/MT5	φ100mm/MT5	φ100mm/MT5	φ100mm/MT5
MOTOR	Main motor power	5.5/7.5 KW		7.5 or 11KW	11KW	11KW	15KW
	Coolant pump power	180W		180W	180W	180W	180W
DIMENSION	Overall dimensions L/W/H	1950/2220/2540/3040×1420×1750mm		2420/2860/3320x1600x1830mm	2900/3400/3900x1600x1830mm	2900/3400/3900/4900x1600x1830mm	4750/5510X1920X1830
	parking size L/W/H	2150/2420/2740/3240×1620×2100mm		2620/2740/3240x1620x2100mm	3300/3800/4300x1900x2100mm	3300/3800/4300/5300x1900x2100mm	3300/3800/4300/5300x1900x2100mm
WEIGHT	Net weight	1500/1700/1900/2300KGS		2950/3300/3550KGS	4000/4500/5000KGS	4000/4500/5000KGS/6500KGS	6500/7500KGS

Brands of Main Parts

Part Name	Origin	Manufacturer	Model
CNC system	FANUC, Japan	FANUC	0i-MF PLUS(Type 3)
Servo feed motor	FANUC, Japan	FANUC
Servo spindle motor	FANUC, Japan	FANUC
Servo integrated driver	FANUC, Japan	FANUC
Spindle group	Taiwan	Royal/Kenturn	BT40-φ150
Roller screw	Taiwan	HIWIN/PMI	FDC4012
Linear guide rail	Taiwan	HIWIN/PMI	45#/45#/45#
Spindle bearing	China mainland	NSK
Unclamping Cylinder	Taiwan	Haocheng	4.5T
Disk type tool magazine	Taiwan	Ammach/Tokuda/Okada	BT40-24T
Locking nut	Taiwan	Svit	M30×1.5P/ M35×1.5P
coupling	China mainland	Sanmu
heat exchanger	China mainland	Miki Pully	EA-02W/220V
Screw bearing	China mainland	NSK	30TAB062
Oiling machine	China mainland	Ishan
Main electrical components	France	Scchneider
Pneumatic components	Taiwan	TWSNS
Chain chip conveyor	China mainland	SUJI
