Bench Milling Drilling Machine with Digital Readout Zx7045c Zx7045c1 Drilling Milling Machine Price

Product Description

Product Description

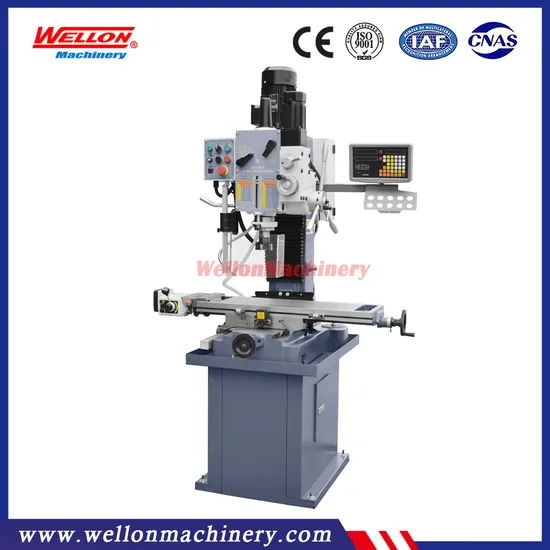

Bench Milling Drilling Machine Zx7045c Zx7045c1
Detailed Photos
Product Parameters

Performence Features:
Ideal for Drilling, Milling Threading.
Automatic change of direction during threading.
Automatic feed with liquid adjustment.
Reduced with precisely bearings.
Additional coolant system.
Massive cross table with precisely grinded surface.
Height adjustable milling head.
Technical parameter:

Specifications	ZX7045C	ZX7045C1
Max. Drilling capacity (mm)	cast iron:45/ Steel:32	cast iron:45/ Steel:32
Max. face mill capacity (mm)	80	80
Diameter of vertical milling (mm)	28	28
Spindle travel (mm)	110	110
Spindle feed rate(mm/min)	8-95	8-95
Distance spindle to column(mm)	260	260
Max. Distance spindle nose to table(mm)	475	475
Spindle taper	MT4 orR8	MT4 orR8
Spindle speeds range (r/min)	50~1250	50~2500
Spindle speeds series	6	6
Dimension of worktable surface (mm)	820x240	820x240
Table travel (mm)	540x170	540x170
Dimension of base(mm)	605x558	605x558
Main motor (W)	Single-phase:1100 Three-phase: 1500	Single-phase:1300 Three-phase: 1800
Coolant motor(w)	40	40
Spindle feed motor(w)	90	90
Net/Gross weight(kg)	330/375	330/375
Packing size(cm)	108x92x124	108x92x124

Standard accessories:
Drill chuck
Taper sleeve
Arbor
Wrench
Draw bar
Optional accessories:
Milling chuck
Safety guard
Angle vice
X axis power feed
Digital readout
Stand
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
