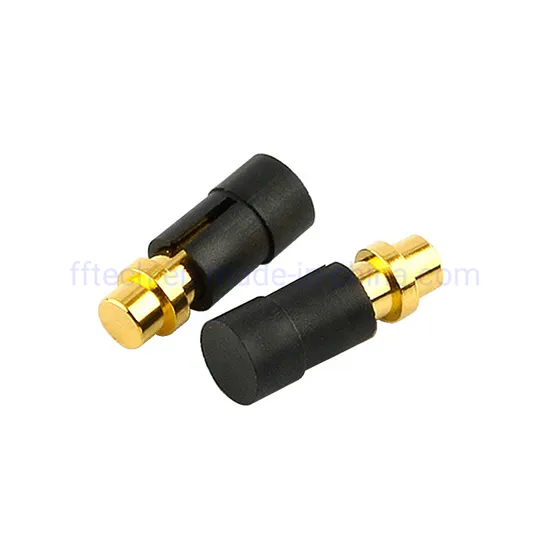

High Quality SMT Type Spring-Loaded Pins Pogo Pin Connector PCB Mount Pogo Pin with Caps

Product Description

Product Parameters

Product Name:	Pogo Pin Serise
Rating Current:	2A
Resistance:	≤30mΩ
Voltage:	≤24V@25°C
Ambient Temperature:	-40°C ~ +85°C 90% R.H.Max
Elastic Force:	120kgf/Pin
Lifetime:	10,000cycles min
Material:	Brass, 60~80U" for Ni-plated, 1~3U" for Au-plated
MOQ:	1000Pcs
Packing:	Bag Packing or Reel Packing

Product Description
The pogo pin or spring-loaded pin is a type of electrical connector mechanism that is used in many modern electronic applications and in the electronics testing industry.They are used for their improved durability over other electrical contacts, and the resilience of their electrical connection to mechanical shock and vibration.
A spring pogo pin consists of three parts; a spring, plunger, and a barrel. When there is an application of force in the pin, the spring compresses, the plunger moves inside the barrel. The barrel's shape maintains the plunger preventing the spring from pushing it out when the pin is not locked in place.Most pogo pins use copper and brass as the base material for the plunger and barrel. A thin layer of nickel usually coats on top.
Copper alloys or spring steel makes the springs.
In addition to that, like all other connectors, manufacturers apply gold plating on the plunger and barrel to improve its contact resistance and durability.
Pogo pins provide great versatility when it comes to design. However, for you to take advantage of this, it requires careful selection and often customizable designs.
Product Series
Product Application
Certifications
Packaging & Shipping
Company Profile
FAQ
Q: Where Can we get the datasheets of the products?
A: Each product has the specification, Please contact with our sales if you need
Q: Can we get the samples before placing the order?
A: Yes. we can send you some free samples for your test before your order.
Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 5~7 days as soon as the payment is released.For customized products, it takes longer.
Q: How about the after-sale service?
A:We offer 12 months for every products we sold. If you meet any problems after sales, Pls contact us freely,we'll help solving the problems within 24 hours.
Q: What's the payment terms?
A: Normally we accept TT and Paypal. L/C is also accepted if the order quantity is large. For old customers, we'll guanartee monthly payment after good cooperationship.
Q: How about your quality control?
A: All the products will be 100% checked before the shipment.
Q: Does your company accept small order?
A: Yes, we accept small trial order.
Q: Do you support customization?
A: We support the OEM&ODM service.
