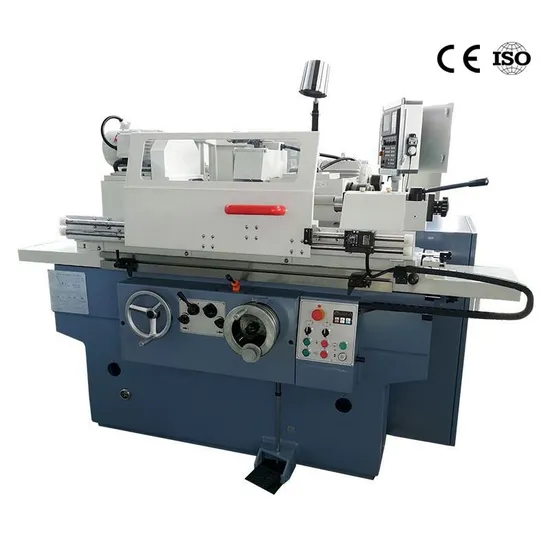

Senmo M1420h Universal Cylindrical Grinding Machine for Internal and External Grinding
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
M1420H
Type
External Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE
Condition
New
Center Height
135mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84602911
Product Description
| Cylindrical Grinding Machine M1420H/F Feature |
| 1. M1420H universal cylindrical grinding machine is the latest up to upgrade products.2. For grinding the workpiece of inner and outer cylindrical and tapered, the most suitable for single piece and small batchproduction use.3. Headstock by a variable frequency motor drive, continuously variable transmission.4. Longitudinal movement of the machine by hydraulic stepless transmission, can also hand-wheel drive; wheel lateral movement withhydraulic quick retreat and manual feed function.5. Remark: according to your requirements, the internal grinding rod is φ10 and φ16, so that the internal grinding wheelconfigured to 50x40x16mm and 45x35x10mm. |
| Specifications | M1420H/FX500 | M1420H/FX800 |
| External grinding diameters | Φ8-200mm | Φ8-200mm |
| Internal grinding diameters | Φ13-100mm | Φ13-100mm |
| Center height | 135mm | 135mm |
| Workhead spindle speed | 50HZ: 25-380r/min stepless | 50HZ: 25-380r/min stepless |
| Max travel of table | 650mm | 950mm |
| Hydraulic traverse speeds | 0.1-4m/min | 0.1-4m/min |
| Max travel of worktable | 50kg | 50kg |
| Grinding length external/internal | 500/125mm | 500/125mm |
| Swivel range of worktable | -14° | -10° |
| Max peripheral speed of grinding wheel | 38m/s | 38m/s |
| External wheel size | MaxΦ400x50xΦ203mm MinΦ280x50xΦ203mm | MaxΦ400x50xΦ203mm MinΦ280x50xΦ203mm |
| Internal wheel spindle rotating-speed | 16000r/min | 16000r/min |
| Workhead and tailstock center | NO.4 Morse | NO.4 Morse |
| Machine motor power | 5.625kw | 5.625kw |
| Overall dimensions(LxWxH) | 2500x1600x1500mm | 3000x1600x1500mm |
| Machine weight | 2500kg | 3000kg |
| Standard Accessories | Optional Accessories | |
| ·Complete set of electric equipment | ·Wheel balancing stand | |
| ·Grinding wheel dresser | ·Radius dresser | |
| ·Wheel flanges | ·Center rest close type | |
| ·Wheel balancing mandrel | ||
| ·3 Jaw chuck | ||
| ·Chuck base | ||
| ·Open type steady rest | ||
| ·Driving dog | ||
| ·Carbide tipped center | ||
| ·Support | ||
| Working Accuracy | ||
| O.D.Roundness | 1.5/2.5μm(O.D/I.D) | |
| Uniform of dia. in longitudinal section | 5/8μm | |
| Surface roughness | Ra 0.32/0.63μm(O.D/I.D) |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
