CE Approved Construction Hoist Building Hoist Passenger and Material/ Goods Hoist China Manufacturer

CE Approved Construction Hoist Building Hoist Passenger and Material/ Goods Hoist China Manufacturer

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
SC200/200GZ
Type
Construction Hoist
Load Capacity
2T - 3T
Speed
40M/Min - 60M/Min
Usage
Construction Hoist
Sling Type
Tower Mast Section
Lift Drive / Actuation
Electric Motor
Lift Mechanism
Rack and Pinion
Attendant
With Attendant
Deceleration Device
With Deceleration Device
Elevator Door
Sider Door
Lifing Speed
60 M/Min
Mast Section
650 X 650 X 1508mm
Cabin Size
3.2 X 1.5 X 2.5m (L*W*H)
Drive
Frequency Control
Application
Construction Usage
Power Source
Electric
Moving Type
Rack and Pinion
Installation
Assembled
Certification
CE
Max Height
450m
Transport Package
Container Sea Freight Packing
Specification
CE certificate
Trademark
ANKA
Origin
China
HS Code
8428
Production Capacity
400 Unit/Year

Product Description

Description:
ANKA provides a whole serial construction in both single and twin cage to the customers, the capacity of cage ranges from 1000kg, 1200kg, 1500kg, 2000kg, 2700kg, to 3200kg, and with direct motor driven and frequency conversion driven to reach the speed of 36 m/min, 40 m/m, 63m/min and 96m/min, the maximum working height is up to 450 meters. And ANKA also provides the customized size of cage to satisfy the special demand from customers.
The electric components and the frequency converter are from Schneider - international famous brand, bearing from SKF, Terminators from Phoenix. ANKA also provide the Germany Nord / SEW motor and gearbox for our customer's specific requirement.
With the advance facilities and skills, clean and environment-friendly workshop, ANKA manufactures the reliable, safe and high performance construction machinery and provide the high efficient vertical access solution for the global customers.
Applications:
Building construction, Residence construction, Bridge construction, Power station construction, Dam construction, Miner project, and etc.
Competitive Advantage:
International standardized design and production
High level quality control system
Reliable quality and very good finishing
Minimum maintenance job and cost in usage

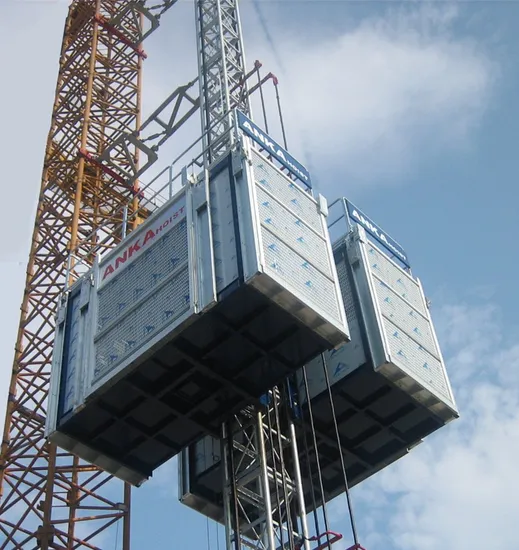

SC200/200GZ Construction building hoist
Capacity: 2 x 2000kg
Speed: 63 m/min (VFC CONTROL)
Cabin size: 3.2 * 1.5 * 2.5m (L*W*H)
Hot dip Galvanized mast section: 650*650*1508mm
Hot dip Galvanzied Tie-in
Electric components: Schneider brand
ANKA HOIST Model Capacity (kg) Lifting speed (m/min) Driven system Cabin dimension (L *W*H) (m) Mast section dimension (mm)
SINGLE CAGE SC100TD 1000 36 Motor directly 3.2 * 1.5 * 2.2 650*650*1508
SC100GD 1000 0 - 40 Frequency control 3.2 * 1.5 * 2.2 650*650*1508
SC200TD 2000 36 Motor directly 3.2 * 1.5 * 2.2 650*650*1508
SC200GD 2000 0-40 Frequency control 3.2 * 1.5 * 2.2 650*650*1508
SC200GZ 2000 0-63 Frequency control 3.2 * 1.5 * 2.2 650*650*1508
SC270GZ 2700 0-63 Frequency control 3.2 * 1.5 * 2.2 650*650*1508
DOUBLE CAGE SC100/100TD 2 X 1000 36 Motor directly 3.2 * 1.5 * 2.2 650*650*1508
SC100/100GD 2 X 1000 0-40 Frequency control 3.2 * 1.5 * 2.2 650*650*1508
SC200/200TD 2 X 2000 36 Motor directly 3.2 * 1.5 * 2.2 650*650*1508
SC200/200GD 2 X 2000 0-40 Frequency control 3.2 * 1.5 * 2.2 650*650*1508
SC200/200GZ 2 X 2000 0-63 Frequency control 3.2 * 1.5 * 2.2 650*650*1508
SC270/270GZ 2 X 2700 0- 63 Frequency control 3.2 * 1.5 * 2.2 650*650*1508
