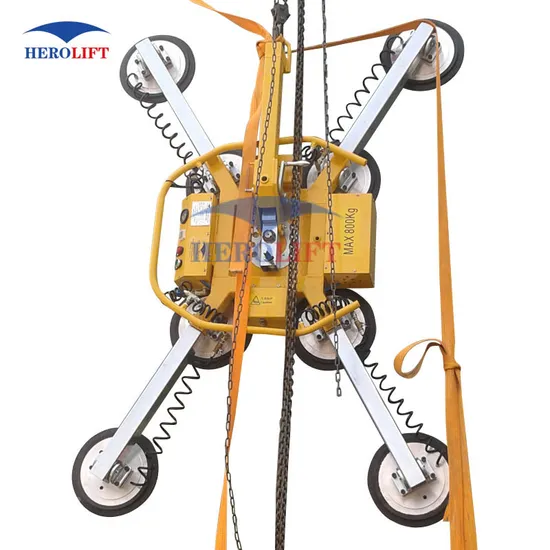

600kg 800kg Portable Manual Suction Cup Sucker Equipment Pneumatic Glass Vacuum Lifter

Product Description

Product Description
Herolift Glass Vacuum lifting machine is a fast, safe and convenient automatic equipment. It uses the principle of vacuum adsorption and uses the vacuum pump as the vacuum source to generate a vacuum at the suction cup end, so as to firmly hold various workpieces (such as glass, iron plates, etc.) Pick up, and transport the workpiece to the designated position through the rotatable mechanical arm.
The glass vacuum lifter is used for handling and transferring various kinds of sheets, and widely used in glass deep processing industry.The lifter is composed of cantilever and handling arm, both part could be customized.
Characteristic
Max.SWL 800KG
1. Manually rotated 360° in the vertical side, and manually rotated 90° in the horizontal side, but taking and releasing by electric
2. Both ends of the suction cup holder are retractable, suitable for occasions with large size changes
3. Imported oil-free vacuum pump, valve
4. Efficient, safe, fast and labor-saving
5. Accumulator and pressure detection ensure safety
6. Suction cup position adjustable and can be closed manually
7.Usually copperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job.

Serial No.	GLA600-8-B-M	Max capacity	600kg
Overall Dimension	1000X1000mmX490mm	Power supply	4.5-5.5 bar compressed air, Consumption of compressed air 75~94L/min
Control mode	Manual hand slide valve control Vacuum suction and release	Suction and release time	All less than 5 seconds; (Only the first absorption time is slightly longer, about 5-10 seconds)
Maximum pressure	85%vacuum degree(about0.85Kgf)	Alarm pressure	60%vacuum degree (about0.6Kgf)
Safety factor	S>2.0;Horizontal handling	Dead weight of equipment	95kg(approximate)
Power failure Maintaining pressure	After power failure, the holding time of the vacuum system absorbing the plate is >15 minutes
Security alarm	When the pressure is lower than the set alarm pressure, the audible and visual alarm will alarm automatically

Features

Suction pad •Easy replace •Rotate pad head •Suit various working conditions •Protect workpiece surface	Power control box •Control the vacuum pump •Displays the vacuum •Pressure alarm
Vacuum gauge •Clear display •Color indicator •High-precision measurement •Provide security	Vacuum pump •Create vacuum power •High negative pressure •Low energy consumption •Stable performance.

Specification

Model	GLA400-4-B-M	GLA600-8-B-M	GLA800-8-B-M
Max. load capacity	400kg	600kg	800kg
Performance	Load Movement: Manual rotation, 360° edgewise, with locking at each quarter point Manual tilt, 90°between upright and flat, with automatic latching in upright position.
Power System	DC12V	DC12V	DC12V
Charger	AC110-220V	AC110-220V	AC110-220V
Quantity of sucker	6	8	8
Packing Size	1000X1000mmX490mm
Total Height: 3.7meters Arm Length: 3.5meters (The column and swing arm are adjusted according to the actual situation of the customer) Column specifications: Diameter 245mm, Mount plate:Diameter 850mm Matters needing attention:The thickness of ground cement≥20cm

Detail display

1	Lifting hook	7	Extension beam
2	General Control box	8	Suction Pads
3	Power switch	9	Control handle
4	Buzzer	10	Air tube
5	Vacuum gauge	11	Vacuum pump
6	Volta meter	12	Support leg

Advantage
1. This machine is widely used in transition of various kind of hollow glass, laminated glass, raw glass and tempered glass, etc.
2. American DC vacuum pump+ DC battery are adopted; When using, there is no need to connect other air source or power source.
3. Digital display vacuum pressure switch and battery charge indicator, which can monitor safe operation of equipment more clearly.
4. With vacuum pressure charging system, equipment can ensure the whole vacuum system within a relatively constant safe pressure value during transition.
Application
Glass Boards
Aluminum Boards
Steel Boards
Plastic Boards
Stone Slabs
Laminated chipboards
