Brightsail Industrial Grinding Machine Cassava Flour Plantain Yam Powder Making Machine Grinder

Product Description

industrial grinding machine cassava flour plantain yam powder making machine grinder

Product Description
BSU single mill without pulse dust collecting system:

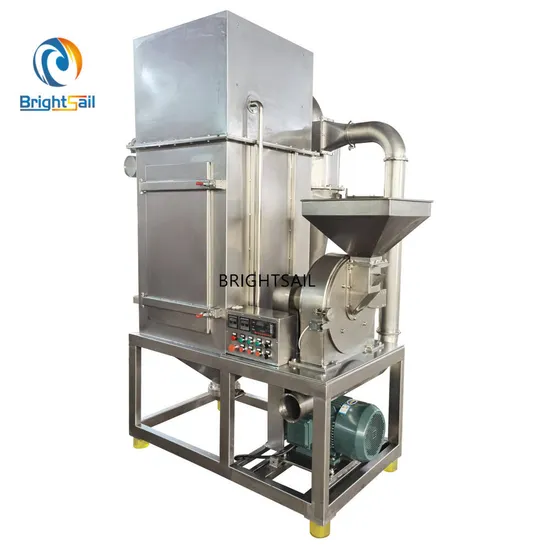

BSG powder grinding set with pulse dust collecting system (joint type & split type):
The crusher part of our BSG cyclone dust collecting grinding set also can be used as a single mill like the left one in the picture above, it is suitable for small capacity, small space or limited budget. If you need continuous and no dust big production, the right type BSG grinder machine is a better choice.
Working principle:
The material is crushed by the force of hit and friction of high speed relative motion of movable knife disc and fixed kinfe disc. If the particle is smaller than the hole size of sieve, it will pass the sieve and get out of the crushing cavity. If not, the
particle will continue to be crushed in the mill cavity.

Technical data:

Model	BSU-20	BSU-30	BSU-40	BSU-50
Capacity (kg/h)	20-150	30-300	50-400	100-800
Size of input granules (mm)	< 6	< 10	< 10	< 10
Size of output granules (mesh)	20-120	20-120	20-120	20-120
Power (kw)	4	7.5	11	15
Overall size (L*W*H)(mm)	550*550*1200	650*650*1520	780*780*1600	850*850*1650

Model	BSG-300	BSG-400	BSG-500	BSG-600	BSG-700
Speed of main shaftrpm	5300	4800	3800	3300	2800
Main motor (KW)	5.5	7.5	15	22	30
Blower(KW)	2.2	2.2	7.5	15	18
Discharge motor(KW)	0.37	0.75	0.75	0.75	1.1
Grinding fineness (mesh)	10-120	10-120	10-120	10-120	10-120
Capacity kg/h	50-500	100-1000	300-1500	500-2500	1000-5000

Details Images
There are different kinds of crushing knives for choices, usually our clients choose hammer type, pinned disc type, and turbo type. Hammer type: It is suitable for grinding heat sensitive materials, and its output capacity is a little higher than other type
knives.
Pinned disc type: It is suitable for making finer powder than other types, like for grain, herb.
Turbo type: It is suitable for grinding high oil content materials, such as coffee beans, spices (coriander, black pepper...etc).

Cyclone part
1) Cyclone can separate dust from powder (granules).
2) Rotary valve make powder discharge speed even. Rotary valve is also made of stainless steel and it is convenient to be cleaned and removed.

Pulse Dust Collecting box
1) Dust is collected inside the dust collecting box.
2) Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled
easily.
3) With pulse-jet cleaning, dust can be collected very conviniently.
Customized powder grinding solutions for our clients:
Main features: 1) Simple structure, easy in installation and maintenance.
2) No dust during production, and dust can be collected in dust collecting box.
3) Continuous production and large capacity.
4) It can grind dry spices with high oil content.
Company Information
Brightsail spice & herb machinery Co.,Ltd focuses on one-stop overall solutions for spice&herb product processing.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2022 year, we have exported our machines to more than 75 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.
Buyer Feedback
Packaging & Shipping
Export standard package. Fumigation wooden box or container.
For small machine, we pack it in wooden box.
For super big machine, we will separate the machine into several parts and pack it with film. Then, fix them in container with steel to avoid any shaking or moving during the shipping.
