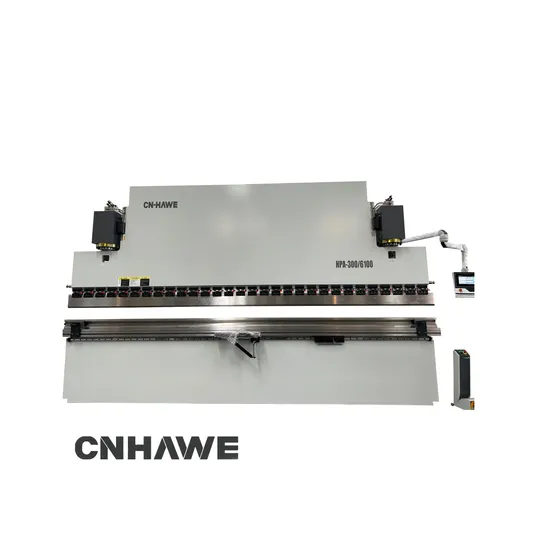

Industrial Machine Hpe CNC Press Brake 300t6100mm 4+1/6+1/8+1 Axis Delem Da53t Hydraulic Sheet Metal Bending Machine.

Product Description

Product Description
HPA Series CNC Press Brake
Press brakes are an important equipment used for sheet metal processing. It bends and deforms the sheet metal into a preset shape and angle by applying pressure. The core components of press brakes include a workbench, a mold, and a power system. The workbench is used to support the sheet, the mold is designed according to the shape to be processed, and the power system provides the necessary pressure and motion control to ensure that the sheet can be accurately bent. The bending accuracy and stability of press brakes directly affect the quality of processed parts, so its design and manufacturing process requirements are high.
HPA series CNC press brakes demonstrate superior bending accuracy and efficiency, capable of increasing bending efficiency by up to 30% within the same production cycle. Moreover, they can achieve an energy-saving effect of over 25%. The rich optional configurations further enhance the bending work.After more than a decade of iterative updates, CNHAWE's electro-hydraulic servo control technology has reached a new level. Looking at the entire industry, the deep integration of this technology with press brakes has created a new era and continues to drive the development of the sheet metal fabricating industry.Product Parameters

Model	Bending Force	Bending Length (A)	Oil Tank	Approaching Speed	Progress Rate	Retum Speed	Column Distance(B)	Throat Depth (C)	Slider Travel(D)	Open Height(E)	Weight	Dimensions
Unit	KN	mm	L	mm/s	mm/s	mm/s	mm	mm	mm	mm	Ton	L*W*H(mm)
HPA-35-1250	350	1250	95	280	18	210	950	300	150	440	2.9	1480*1320*2260
HPA-65-1500	650	1500	110	260	18	200	1150	350	180	450	3.6	2170*1450*2360
HPA-65-2050	650	2050	160	260	18	200	1700	350	180	450	4	2720*1450*2360
HPA-65-2500	650	2500	200	260	18	200	2150	350	180	450	4.4	3170*1450*2400
HPA-110-2500	1100	2500	230	260	18	200	2000	410	220	490	6.3	2660*1540*2610
HPA-110-3100	1100	3100	230	260	18	200	2600	410	220	490	7.3	3260*1540*2610
HPA-110-4100	1100	4100	230	260	18	200	3600	410	220	490	8.7	4260*1540*2610
HPA-135-4100	1350	4100	230	260	18	200	3600	450	220	490	9.56	4260*1590*2610
HPA-160-3100	1600	3100	230	220	16	180	2600	410	220	490	8.9	3270*1550*2700
HPA-160-4100	1600	4100	230	220	16	180	3600	410	220	490	10.4	4270*1550*2700
HPA-220-3100	2200	3100	230	180	13	170	2600	410	220	490	11.2	3280*1830*2790
HPA-220-4100	2200	4100	230	180	13	170	3600	410	220	490	13	4280*1830*2790
HPA-220-4500	2200	4500	230	180	13	170	3600	410	220	490	13.5	4480*1830*2790
HPA-220-5000	2200	5000	230	180	13	170	4000	410	220	490	18	4930*2130*3350
HPA-220-6000	2200	6000	230	180	13	160	5100	410	220	490	21.6	5980*1920*3040
HPA-300-3100	3000	3100	230	170	11	140	2600	410	280	510	14.1	3290*1890*3040
HPA-300-4100	3000	4100	230	170	11	140	3600	410	280	510	16.4	4290*1890*3040
HPA-300-5000	3000	5000	230	160	11	135	4000	500	280	510	20.8	4930*2130*3350
HPA-300-6000	3000	6000	230	160	10	130	4800	500	280	510	24.5	5980*2130*3550

Detailed Photos
CNC Controller
CNC controllers play a crucial core role in the motion control of press brakes. CNHAWE mainly uses controllers from three mainstream companies in the world, namely Delem from the Netherlands, ESA from Italy, and Cybelec from Switzerland.
Proper tuning will enhance the compatibility between the controller and the machine. By combining our core assembly process with advanced tuning techniques, we can unlock a variety of high-end optional functions for customers to choose from.
CNHAWE controllers elevate precision and eBack-gauge
The CNHAWE back-gauge system is at the forefront of the press brake industry with its excellent motion accuracy.
We use imported ball screws and linear guides, which improve the accuracy and consistency in the production process of CNHAWE's CNC series press brakes.
Our entire frame of the ack-gauge system undergoes high-temperature tempering treatment to eliminate internal stress, improve metal plasticity and toughness, and prevent precision loss caused by frame deformation.Servo Motor
Servo motors have become the dominant technology in the field of industrial automation. It achieves high dynamic performance and improves machine production efficiency through low energy consumption, becoming the preferred choice for many enterprises. Compared to traditional motors, using servo motors can save up to 35% of energy, helping customers significantly improve efficiency and reduce operating costs in the production process.Servo Hydraulic System
In a CNC press brake, a complete servo-hydraulic system includes key components such as a motor, oil pump, filter elements, valve group, hydraulic cylinders, and oil tank. We have chosen HAWE, a well-known German manufacturer, as our core partner. Their high-performance and low failure rate products provide a solid foundation for our system.
Upper Clamp
By using manual quick clamps, we can make the upper punch tools on our press brake be easily and quickly replaced. Saving time and improving work efficiency. For high-end demand, we offer hydraulic clamps or pneumatic/hydraulic clamps from the Dutch brand WILA - the world's best press brake clamping solution provider.FAQ
Q1: How to get an accurate quotation from us?
A1: Please provide us with detailed information on the material, maximum thickness, and maximum width.
Q2: Can you provide OEM service?
A1: Yes, we can. Your design is accepted and your logo can be used on the machine.
Q3: How much is the shipping cost from China to your country?
A3: We can send the machine to your port or door address by sea or air. Please tell us your nearest port or address and zip code. We have reliable shipping agents to ensure safe, convenient, and on-time delivery.
Q4: How to operate this machine?
A4: Video line from our factory or we send you the video directly.
Q5: Do you provide teaching and training?
A5: Training in supplier factory.
