Electric Power Type Used Concrete Batching Plant in Canada

Product Description

Cement Mixing Equipment Concrete Mixer Machine Plant for Construction

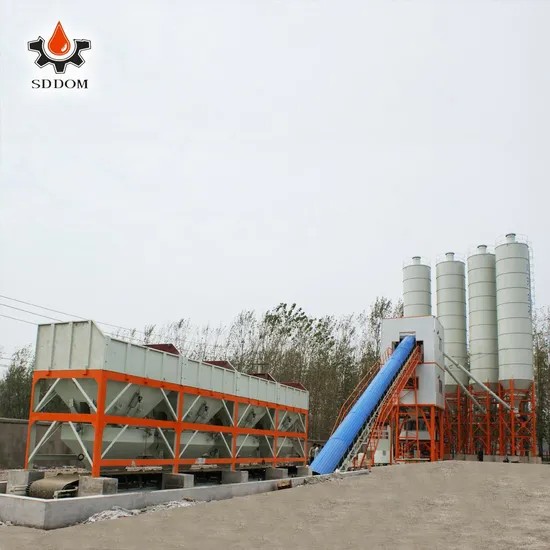

HZS50 concrete Batching Plant
1	Model	HZS50 concrete batching plant
2	Capacity	50m3/h
3	Total Power	74KW
4	Total weight	26500kgs
Configuration
1	Mixer	JS1250
2	Batching Machine	PLD1600 3 Bins
3	Cement Weighing System	1 set
5	Water Weighing System	1 set
6	Additive Weighing System	1set
7	Storage Hopper	1 set
8	Electric Control System	1 set
9	The Skip hopper Elevating System	1 set
10	Pneumatic System	1 set
11	Additive Hoppers	1 set
12	Steel Frame	1 set
13	Control room	1 set
14	Cement silo	Optional
15	Screw conveyor	Optional

Product Details:
1.Mixer: Twin-Shaft Mixer

JS1250 Mixer
1	Lubrication	Automatic
2	Type	Twin-shaft
3	Power	2*18.5KW
4	Charging/Discharging volume	1600L/1250L
5	Discharging height	3.8M
6	Discharge Way	Auto
7	Working Cycle Period	30s
8	Max. aggregate size	80/60mm
9	Mixing blade and scale board	High chrome, resistant material

2.Aggregate bins

PLD1600 Aggregate Batch Machine
1	Aggregate volume	7m3*3
2	Discharging gate	6 sets
3	Aggregate hopper cylinder	6 sets
4	Weighing hopper	1800L
5	Sensor	1000kg*9
6	Measuring precision	±2%
7	Belt conveyer	Width: 650mm
8	Belt speed	1.25 m/s

3.Elevating system:Clent can choose skip hopper or belt conveyor
4.Weighing system

1	Cement Weighing System	Volume	480L
		Weighing Range	0-480kg
		Weighing Accuracy	±1%
		Pneumatic valve	BV1F300S
		The sensors	500kg*3
2	Water Weighing System	Weighing Scale	400L
		pump model	QY50-18-4
		power	3 kW
		Sensor	500kg×2
		Weighing Accuracy	±1%
3	Additive Weighing System	Additive pump model	GISGH
		storage box	2M3
		power	0.75 kW
		Additive Scale	40L
		Weighing Accuracy	±1%
		Sensor	100kg*2
		Pneumatic butterfly	DN50

5.Control system and control room
Other Models:

Model	HZS25	HZS35	HZS50	HZS60	HZS75	HZS90	HZS120
Output(m3/h)	25	35	50	60	75	90	120
Mixer Capacity(m3)	0.5	0.75	1	1	1.5	1.5	2
Discharging Height	4100	4100	4100	4100	4100	4100	4100
Mixer	JS500	JS750	JS1000	JS1000	JS1500	JS1500	JS2000
Aggregate Batcher	PLD800	PLD1200	PLD1600	PLD1600	PLD2400	PLD2400	PLD3200

Our main Product
FAQ:
Q: Why should I choose you?
A: We are a young and growing group.We are professional and nimble on design.We have high requirements and quality control on the product quality.We only sells best but not cheapest product.
Q: How about the quality of your products?
A: We are factory with more than 10 years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery.
Q: How about the price?
A: We are professional manufacture, not dealer, so we can give you a lower price than those trade companies can.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Do you provide concrete batching plant flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various concrete batching plants. We can design the concrete batching plant based on customers' particular requirements.
