Intelligent Sheet Stack Cutting Machine for PVC Pet Non-Woven Fabric Material

Product Description

Product Description About Shengxiang Ruian Shengxiang Packaging Machinery Co., Ltd. was established in 2010. It is a private economic entity integrating development, design, production, sales, and service. Mainly specializing in the manufacture of packaging equipment such as cross-cutting machines, A4 paper cutting machines, slitting machines, roll paper cutting machines, rewinding machines, printing machines, and so on.

Specification

Model	SX-SH1100	SX-SH1400	SX-SH1600
Cutting Width	1100 mm	1400 mm	1600 mm
Max Diameter of Material	φ1400 mm	φ1400 mm	φ1400 mm
Length of Cutting	300-1500 mm	300-1500 mm	300-1500 mm
Max Stacking Height	1200 mm	1200 mm	1200 mm
Cutting Speed	20-200 times/min	20-200 times/min	20-200 times/min
Cutting Precision	±0.2 mm	±0.2 mm	±0.2 mm
Total Power	7 kw	9 kw	11 kw
Weight	4500 kg	5000 kg	5500 kg
Overall Size (L x W x H)	7000*2000*1850 mm	7000*2300*1850 mm	7000*2600*1850 mm

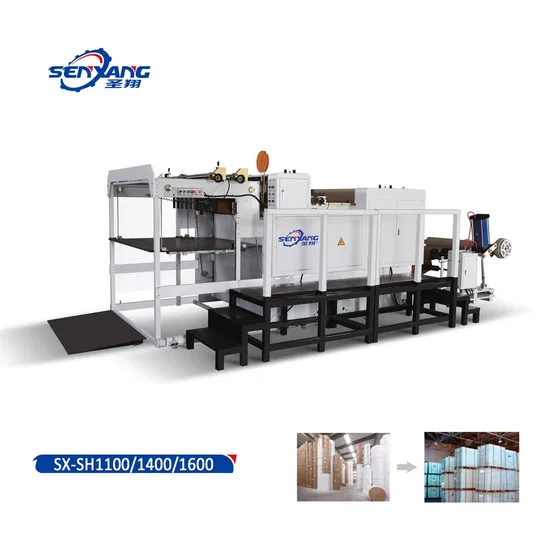

SX-SH1100/1400/1600 Automatic Paper Roll Sheeter Machine with 1.2 Meter Height Stacking Feature and Characteristic This machine suitable for Cutting all kinds of thin paper (28-100g), PVC, PET film, paper-plastic composite, cloth, leather, and other large drum packaging materials, etc.
It adopts a servo motor for controlling constant-length cutting. It adopts a pneumatic, a photoelectric sensor for controlling the transmission system, with photocell, gas together. it has the functions of easy operation, high precision, good stability, low noise. (photo tracking function is optional.) this machine has the function of the frequency converter timing device, automatic counting, stop work by alarm magnet powder tension control, can be cut vertically, adopts blower to get rid of waste.
Machine Details

Automatic Loading Unit 1. Pneumatic feeding system, suitable for your large roller material 2. Automatic photocell EPC system	Magnetic Tension Control 1. Tension Magnet adopts 10KG/20kg controller, to keep your paper flat and double side under the same tension.

High Iron Stairs 1. More convenient to operate. 2. High-quality steel stair without worry to stand.	Auto Stacking, Max 1200mm 1. Pneumatic lifting stack sheet table, automatic coming down with sheet collect. 2. Each side with fixed or adjustable baffles to slip the finish

Packaging Details
Why Choose Us - Shengxiang
1. Quality Warranty
One Year Warranty We PromiseCommissioning services: Product arrived on-site, Our Technical Staff Will Guide you to Finish installation,commissioning, andtraining How to operations Until you get it (Installation charge, buyer responsible)
2. Training Services
We will provide comprehensive technical training if necessary Training Include as following:(1) Normal operating procedures for equipment training.(2) Knowledge of routine maintenance on equipment training.(3) Introduction of the equipment and service solutions for training.
3. Lifetime Service
Warranty expires, we will provide life-long service to all customers on a regular basis to provide equipmentupgrades and maintenance services.
4. Archives Service
After execution of the contract, we will establishment of archives, including the sale contract, the technical parameters,commissioning acceptance of a single report, the relevant technical drawings.
Exhibition
Certification
FAQ
1. Are you a factory or trading company?We are an actual factory and manufacturer with trading in the line of paper cutting machines, slitting machines for more than 10 years.2. Where is your factory located? How can I visit there?Our factory is located in Ruian City, Zhejiang Province, China,
less than one hour by air from Shanghai. All our clients from home or abroad, are warming welcome to visit us!
3. What about your payment term?
For new customers, our payment terms are 30% T/T in advance before production, the balance of 70% should be paid before delivery.
4. Where is your main market?
Our products are sold well in 30 provinces and have a good reputation in China, we pay attention to developing the overseas market, such as Europe, Russia, Southeast Asia, Middle, and South America, Africa, and other countries all over the world.
5. How does your factory do regarding quality control?
Quality is our soul of the company. Our people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed CE certification. 6. What about a warranty and do the engineers available overseas? One-year warranty. During this period, if some parts were a problem, we will send them by courier to you. 7. What about the after-sales service? We provide the whole life after-sales service. Even after one year warranty, we support the spare parts price without benefit.
