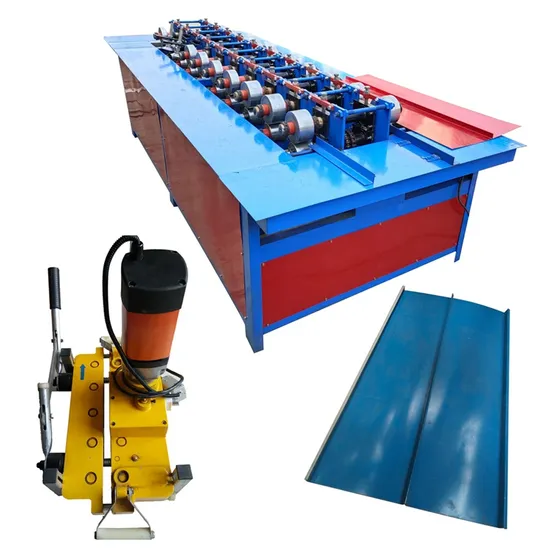

Construction Hoarding Fence The Temporary Cheap Prefab Houses Fence Mesh Fence Panel Making Machine

Product Description

Product Description
Quick Assemble Prefab Container House Making Machines
We can provide whole set of prefab house profile making machines.We can provide whole set of prefab house profile making machines. 1.Roof tile 2.Moisturizing layer 3.Top frame secondary beam 4.Top frame main beam 5.Ceiling tiles 6.Double-sided rock wool sandwich panel 7. Uprights 8.Bottom frame main beam 9.Bottom frame secondary beam 10.Bottom frame main beam 11.50 edge holder 12.Top frame main beam
Product Parameters

Advantages of shelf layer panel cold roll forming machine
1.The width be automatic adjusted by PLC.
2.shelf layer panel cold roll forming machine adopts memorial arch frame type,independent roller station make the machine more beautiful and stability.
3.All the rollers are through quench treatment ,CNC machine treatment twice and polished on the surface to guarantee the accuracy and long life.
4.we also have other type of shelf layer panel cold roll forming machine.It is with the whole adjusting system to change the sizes of the shelf panel. it no need to change the spacer one by one, just change the screw whole on the machine so that can adjust different sizes. this design is much convenient and quick than the changing spacer machine line.
5.The cutting is hydraulic cutting, you can change different blades for different sizes of the shelf.

Decoiler :	Manual decoiler	* Hydraulic decoiler (Optional)
Forming station :	According to your profile drawings	* With straighten revise rollers
Main machine motor brand :	Shanghai Lichao (Famouse Brand)	* Siemens (Optional)
Driving system :	Chain drive or Gear drive	* Gearbox drive (Optional)
Machine structure:	Cantilever type	* Forged Iron station (Optional)
Forming speed :	10-20 (M/MIN)	* Or according to your profile drawings
Rolling Shaft:	40Cr Steel Material	* (Modulation, fine turning, fine grinding)
Rollers' material :	CR12 Steel (Quenching, fine turning and grinding of inner holes and surfaces, Hard chrome)	* SKD-11 (Optional)
Cutting system :	Post-cutting	* Pre-cutting (Optional)
Frequency changer brand :	Yaskawa	* Siemens (Optional)
PLC brand :	Delta,Touch Screen	* Siemens (Optional)
Power supply :	380V 50Hz 3ph	* Or according to your requirment
Machine color :	Industrial blue	* Or according to your requirment
Runout Table:	Roller type,non-power	* Motorized,Drop off,auto stack(Optional)

Standard Decoiler
De-Coiler is provided to load Raw materialcoil on its bridge& Hold the coil and also inloop area store the row material beforein process. It will hold tighten sheet coil &decoiling for roofing line smoothly.
Entry Guides
1. With several support rollers, to feed the
material more smoothly
2. Equipped with 2 groups nylon wheels inthe middle of the platform, prevent thematerial surface from being damaged, andfeed the material more easily and quickly
3. Can be With hand wheels to adjust thefeeding size, more conveniently.
4. Optional With manual cutters to cut feedmaterial more easily
Roll Forming
Consist pairs of contoured roll tools. Whilethe coil stock is passing through successioncontoured rolls the material bends toits desired shape. 1.Rolling shaft :40CrSTEEL,Tempering treatment to preventdeformed and improve hardness,Shaftdiameter 75mm2.Roller:Cr12 steel.Chromed treatment.
improve the hardness and prevent abrasionanti corrosion increase service life.
Hydraulic Cutting
Work type : Hydraulic cutting Drivingmethod : By pillar type cylinder Cuttingdevice structure : Guide pillar type Cutter
material:GB-Cr12 with heat treatment Cutting lengthtolerance:+1mm/3m Cutting feature: Steady and safe working condition Oil tube and wiresconnection All the tubes and wires will bemarked by the numbers or letters,So it will bevery easy to connect for theunprofessional client.
PLC & CONTROLPANELS
Frequency brand:Delta,PLC brand:DeltaScreen type:Touch screen, also have buttonson the panel Screen language:English/Chinese /Spanish Low pressure electric
part:Schneide brand Encode.Omron brand
Remark:Support multi orders input,ensure themachine can work continuously according to
different request without stop. All the
electrical parts are branded with high qualityit can be fixed easily if damaged
Detailed Photos

Other product links

Company Profile

Certifications

Packaging & Shipping

FAQ
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
