China Manufacturer D Profile Dock Bumper Rubber Fender of Singapore

Product Description

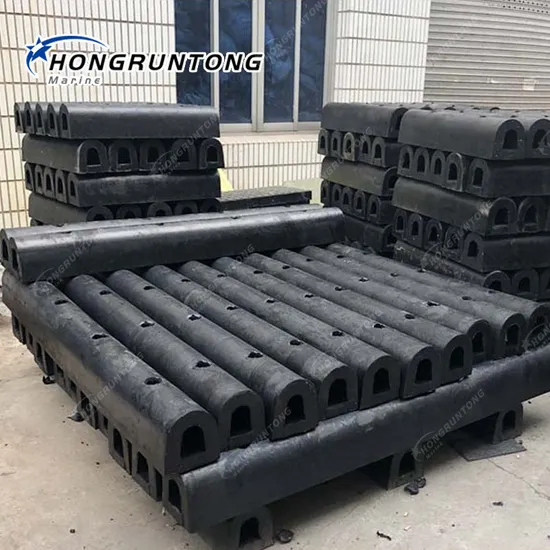

D Type Rubber Fenders
Hongruntong D Type Fenders are used on Tugs/Ocean-going Vessels. D Type Fenders are also used for extensive applications on small jetties and fishing harbours. D Type fenders (also known as Extruded fenders and Square fenders) are used for smaller vessels, Tug Boat and lighter applications. They are usually bolted to the structure, either through the top or sides of the fender. Available in various sections including D shape, Square shape and Wing type, they can be supplied in almost any length then cut and drilled as needed.
Fender can be divided into four types below: E-DC, E-SC, E-DD, E-SD.
Product Description After Sales Service Features & Applications Product Parameters
E-DC:

A	B	C	D	E	F	G	H	K
[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
100	25	10	30	15	100	50	90 - 130	200 - 300
150	30	12	65	20	150	75	110 - 150	250 - 350
200	45	15	75	25	200	100	130 - 180	300 - 400
250	50	20	100	30	250	125	140 - 200	350 - 450
300	60	25	125	30	300	150	140 - 200	350 - 450
350	70	25	150	35	350	175	140 - 200	350 - 450
400	80	30	175	35	400	200	140 - 200	350 - 450
400	80	30	200	35	400	200	140 - 200	350 - 450
500	100	30	250	35	500	250	140 - 200	350 - 450
*Note: Other sizes can be customized according to the requirements.

E-SC:

A	B	C	D	E	F	G	H	K
[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
100	25	10	30	15	100	50	90 - 130	200 - 300
150	30	12	65	20	150	75	110 - 150	250 - 350
200	45	15	75	25	200	100	130 - 180	300 - 400
200	40	15	100	25	200	100	140 - 200	300 - 400
250	50	20	100	30	250	125	140 - 200	350 - 450
300	60	25	125	30	300	150	140 - 200	350 - 450
350	65	25	150	35	350	175	140 - 200	350 - 450
350	65	25	175	35	350	175	140 - 200	350 - 450
400	70	30	200	35	400	200	140 - 200	350 - 450
500	90	40	250	45	500	250	150 - 230	400 - 500
*Note: Other sizes can be customized according to the requirements.

E-DD:

A	B	C	D	E	F	H	K
[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
70	30	15	30	45	80	90 - 130	200 - 300
100	45	15	30	50	100	90 - 130	200 - 300
125	60	20	40	60	125	110 - 150	250 - 300
150	75	20	40	75	150	110 - 150	250 - 300
150	80	25	50	100	200	130 - 180	300 - 400
200	100	25	50	100	200	130 - 180	300 - 400
200	100	30	60	125	250	140 - 200	350 - 450
250	125	30	60	125	250	140 - 200	350 - 450
300	150	30	60	150	300	140 - 200	350 - 450
350	175	35	75	175	350	140 - 200	350 - 450
380	190	35	75	190	380	140 - 200	350 - 450
300	150	35	75	175	400	140 - 200	350 - 450
400	200	35	75	200	400	140 - 200	350 - 450
500	250	45	90	250	500	160 - 230	400 - 500
*Note: Other sizes can be customized according to the requirements.

E-SD:

A	B	C	D	E	F	H	K
[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
100	45	15	30	50	100	90 - 130	200 - 300
150	65	20	40	70	150	110 - 150	250 - 300
125	60	20	40	80	165	110 - 150	250 - 300
150	65	25	50	90	200	130 - 180	300 - 400
200	95	25	50	90	200	130 - 180	300 - 400
250	120	30	60	120	250	140 - 200	350 - 450
250	115	30	60	140	300	140 - 200	350 - 450
300	135	30	60	125	300	140 - 200	350 - 450
400	200	35	75	200	400	140 - 200	350 - 450
500	250	45	90	250	500	160 - 230	400 - 500
*Note: Other sizes can be customized according to the requirements.

Detailed Photos Company Profile With certification, product quality is More Guaranteed!
Since 1990, Hongruntong Marine have been committed to the supplying of equipments, tools and solutions for the marine and offshore industry. Up to now, we have reached cooperation with 800+ customers in more than 30 countries and regions around the world.
FAQ 1. What's the material of your fenders?
Material: Natural rubber.
2. What's the advantage of your fenders?
Built and tested in accordance with PIANC specifications.
Third quality inspection.
Stable price and delivery time.
Best Customer Testimonials .
3. How long about the shortest delivery time?
Multiple production lines are synchronized to ensure delivery within the specified time.
4. What's your MOQ of your fenders?
MOQ: 1 Piece.
5. What's the lifespan of your fenders?
Lifespan: More than 10 years.
6. What's the warranty period of your products?
36 months. Excellent quality reassures you and me.
7. What's your standard of the fenders?
To be satisfy with PIANC & IASC.
8. What kind of certificate can you provide?
DNV.GL, BV, CCS, ABS, LR certificates are available.
