Hb-3000 Brinell Hardness Tester

Product Description

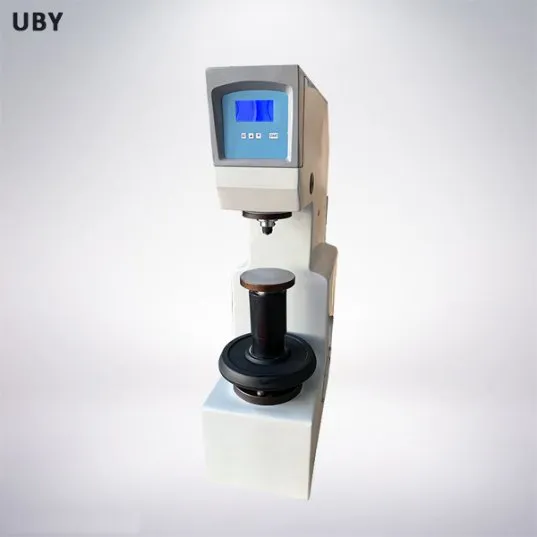

HB-3000 Brinell Hardness Tester
Product Overview:
HBS-3000 digital touch screen electronic Brinell hardness tester is a mechatronics product with precise mechanical structure and microcomputer controlled closed loop system. The instrument cancels the weight and adopts electric loading and unloading test force. The pressure sensor with 0.5‰ accuracy is used for feedback. The CPU controls and can automatically compensate for the test force lost during the test. The indentation can be directly measured on the instrument through the micrometer eyepiece. The test force, indentation length, dwell time, number of measurements, conversion scale, date and time can be more intuitively displayed on the large screen. When operating, just measure the indentation and press the eyepiece button to automatically calculate the hardness value and display it on the screen. The data results can be saved and viewed in a table or output through the built-in printer.
Application range:
It is mainly used for the hardness determination of materials such as cast iron, steel, non-ferrous metals and soft alloys. In addition, it can also be used for the hardness determination of some non-metallic materials such as hard plastics and bakelite. Suitable for factories, workshops, laboratories, colleges and universities and scientific research institutions.
Implementation standards: EN, ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2, JJG150
Product features:
1. It has ten levels of test force and can test ten types of Brinell scales, with a wider test range;
2. The housing is cast in one step by a special sand casting process, and the structure is stable and does not deform;
3. The closed-loop sensor loading microcomputer control system has high test accuracy and stable performance;
4. This machine adopts electronic automatic loading and unloading, microcomputer control and can automatically compensate for the test force, ensuring the accuracy of the test.
5. The noise generated by this machine during the test is very small, suitable for use in various laboratories.
6. This machine can be used with computer Brinell image measurement system software to greatly improve work efficiency.
Specifications:

Brinell scale	HBW2.5/62.5,HBW2.5/187.5,HBW5/62.5,HBW5/125,HBW5/250,HBW5/750,HBW10/100,HBW10/250, HBW10/500,HBW10/1000,HBW10/1500,HBW10/3000
Test force	62.5kgf (612.9N),100kgf (980.7N),125kgf (1226N),187.5kgf (1839N),50kgf (2452N),500kgf (4903N),750kgf (7355N),1000kgf (9807NN),1500kgf (14710N),3000kgf (29420N)
Minimum measurement unit	0.625µm
Dwelling time	0~60s
Hardness resolution:	0.1HBW
Total magnification	20X
Hardness test range	(8-650)HBW
Dimensions (mm)	550×210×750mm
Main unit weight	140kg
Maximum test piece height	200mm
Inner wall to indenter center	135mm
Hardness reading	LCD,,
Power supply	AC110-220V±5%,50~60Hz

Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.
4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.
FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
