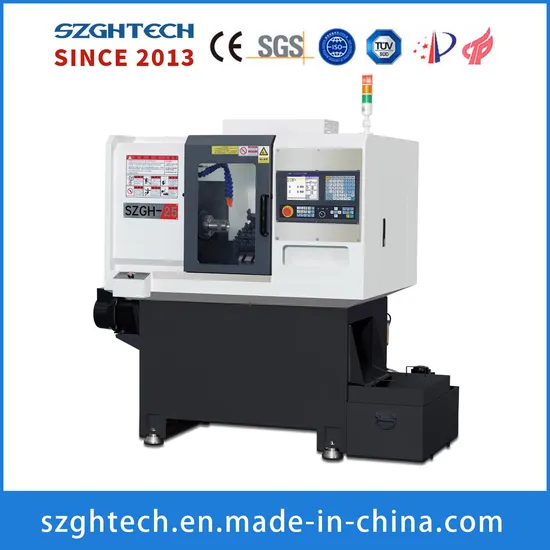

Szgh-25 Heavy Duty 4 Axis Automatic Tool Change CNC Router Lathe Machine CNC Machine Factory

Product Description

Heavy Duty CNC Turning Lathe Machine Vertical Machining Center/ VMC Milling Machinery/CNC Milling Machine/ CNC Lathe Product Overview
SZGH-25 is suitable for batch production of copper, iron, aluminum and stainless steel bars within 25mm, and batch production of open-type forged parts with automatic feeding of pellets within 50mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 250mm.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 2mm, precision tolerance within ±0.01mm, and smoothness within 1.6. It is widely used in the upgrading of hard rail CNC lathes and hydraulic automatic lathes to realize automatic production and to save labor costs and improve product quality.
Standard Configuration

Project		Unit	Standard value	Max value
Processing Capacity	Max. diameter of bar bore	mm	25	26
	Max. particle diameter (disk type)	mm	200	300
	Max. length of workpiece	mm	150	180
	Cutting amount of stainless steel on one side	mm	2	2.5
	Machining accuracy of the workpiece	mm	±0.01	-
	Surface roughness	Ra	1.6	-
	the height of center tool holder	mm	40	-
	Turning Diameter	mm	350	-
	Square Knife Specifications	mm	16	-
Travels	X-axis effective travel (diameter)	mm	500	-
	Z-axis effective travel	mm	180	-
Feed	X-axis rapid traverse	m/min	25	30
	Z-axis rapid traverse	m/min	25	30
	X-axis servo-motor power	kW	1.3	-
	Z-axis servo-motor power	kW	1.3	-
Spindle	Max.Spindle Speed	rpm	3500	4000
	Spindle Motor Power	kW	2.2	-
	Spindle nose taper	-	A2-4	-
	Support hydraulic chuck size	inch	5	6
Dimensions	Dimensions	mm	1700*1400*1600	-
	Total Weight	kg	1400	-

Machine tool specifications and component items		Specification	Standard	Optional
Part Specifications	Screw	25mm	Taiwan ball grinding precision grade	-
	Guide rail	25mm	Taiwan H-class linear guide rail	-
	Bearing	-	Domestic brand front 2 rear 2 high-speed angular contact bearings
	Spindle motor	2.2kW	Variable frequency drive type	3.7kW servo spindle
	Feed servo	1.3kW	SZGH Speed Servo	-
	CNC Control	-	SZGH	SZGH
Machine specifications	Bed Type	30°	Slant Bed	-
	Base form	-	Heavy-duty anti-deformation patented base	-
	Clamping method	-	hydraulic clamping	-

The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail.
Product Features

Using Anti-deformation patented heavy-duty The weight is enough to support the anti- The key components adopt high-quality wear-
base, it is heavy enough to support fast speed. -vibration and improves the accuracy and resistant configurations such as Taiwan, and
smoothness during bar machining. the spindle installation is all dynamically
balanced.
Equips with auto lubrication system to The high rigidity cast base and gantry 2.2KW,4000 RPM spindle motor,
ensure transmission system smoothly provide confidence of perfect stability Taiwan H-class linear guide rail; Max
and long-term running. and high precision when the operation. length of workpiece is 180mm
System
Using Anti-deformation patented heavy-duty base, it is heavy enough to support fast speed.
The weight is enough to support the anti-vibration and improves the accuracy and smoothness during bar machining.
The key components adopt high-quality wear-resistant configurations such as Taiwan, and the spindle installation is all dynamically balanced.
Adopting Yashu electric control package to make electromechanical cooperation play the best efficiency.
Spindle Rotary cylinder Machining of long shaft
The self-made high-speed paired The standard configuration adopts a lt can realize the processing of 120mm
bearing unit spindle adopts angular hydraulic rotary cylinder to make the long workpiece with the nozzle holder.
contact high-speed bearings,and the clamping force stronger, more stable
normal speed is 3500/min, which is and have a longer
suitable for large-scale machining. The service life. It can be replaced with
according to different usage occasions pneumatic clamping according to the
of customers. If high-speed and actual situation.
high-gloss requirements are required,a
6000-rpm high-speed electric spindle
can be selected.
ball screw Linear Guides
Taiwan brand 25 mm ball grinding precision grade screw Taiwan brand 25mm Linear Guides precision grade
rod
