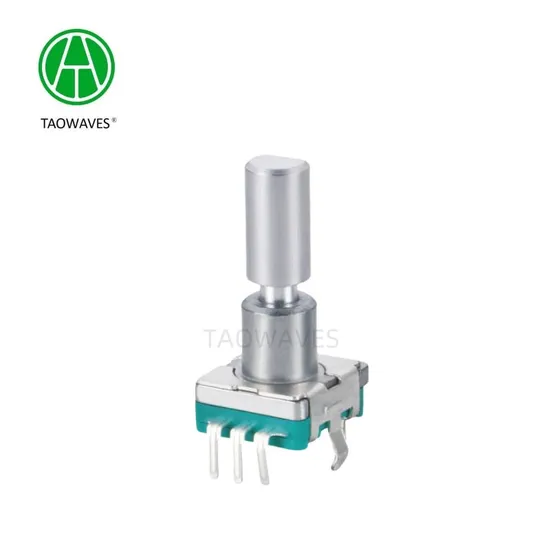

11mm Reset Switch Rotary Volume Switch for Car Audio

Product Description

11mm Reset Switch Rotary Volume Switch for Car Audio
RS11 Series Product Specifications

1.Electrical Characteristics
Rated voltage:	DC 5V
Resistive load:	10mA
Insulation resistance:	100MΩ Min at DC 250V
Dielectric strength:	1 minute at AC 300V
Switching characteristics:	S.P.D.T Automatic reset
2.Mechanical Characteristics
Total ratational angle:	90°±5°
Detent torque:	3~20mN.m.(30~200gf.cm)
End stop strength:	3.0Kgf Min
Shaft wobble:	0.7*L/30mm p-p Max
Push-Pull Strength of shaft	8KG
Operation fore of switch:	500±200gf
Travel of switch:	0.5±0.3 mm
3.Endurance Characteristics
Rotational life:	15,000cycles
Push-life:	20,000cycles
Operating temperature range:	-30ºC to+80ºC
Storage temperature range:	-40ºC to+85ºC

Our Factory
Application:
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.
2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.
3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)
4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.
5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.
6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
