High-Performance 3000W Stainless Steel CNC Laser Cutter for Sheet Metal

Product Description

Recommend Products
view more >> Recommended by seller

Rectificadora Engine Block And Cylinder Head metal mini Surface Grinding Machine $6,850.00 - $11,420.00 / set 1 set

High Power 1530P 2kw CNC Machine Plate Fiber Laser Cutting Steel $8,900.00 - $16,800.00 / set 1.0 set

Nice Price Hot Selling Tornos para metal Gap Bed Conventional Manual Lathe Machine $780.00 - $5,220.00 / set 1.0 set

High Precision CNC Vertical Machining Center VMC CNC 3 Axis 5 Axis Milling Machine of SMAC $10,800.00 - $27,070.00 / set 1.0 set

Plastic Injection Manufacturers Automatic Plastic Injection Molding Machine 120T $14,210.00 - $20,290.00 / set 1 set

China heavy duty metal CNC Plasma Cutter Plasma Cutting Machine $4,880.00 - $7,800.00 / set 1.0 set

220V 350W Conventional Torno Para Metal Working Bench Lathe Machine $690.00 - $4,255.00 / set 1.0 set

Exquisite Quality Metal Hydraulic Hose Press Workshop Press Machine $2,190.00 - $4,380.00 / set 1 set
Products Description



Fiber Laser source (IPG 4KW )
Word smallest KW-class fiber laser can operate in extremely high humidity environments up to 90% relative humidity YLR-U lasers improved piercing quality enables shorter lead-ins with denser part nesting that reduces overall material waste High Peak Power Option provides improved process quality and speed, increased overall throughput, while saving material, time and operating costs.

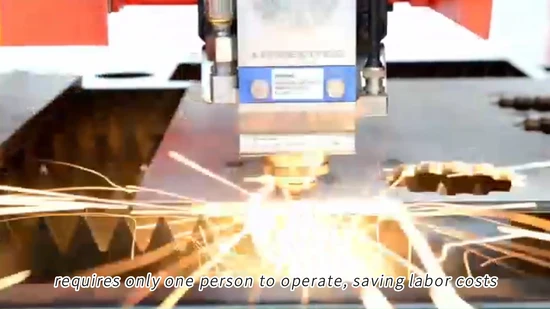

Laser Cutting Head (BM114 )
No.1 professional laser cutting head manufacturer in China Modular design with easy maintenance. Dual water cooling circuits. Auto focus to reduce human intervention and improve piercing and cutting efficiency. 3 Cover glasses (top, middle and bottom) to protect collimation & focus lens. IP65 class dustproof, patented cover glass cover plate. All-around dust prevention. Warranty: one year, not include lens and nozzles

Rack Transmission
High-precision YYC brand rack transmission, faster transmission speed, wear resistance and longer service life Note: If YYC cannot supply in time during OVID difficulty situation, we will replace with Other famous Taiwan brand like Taiwan ND.

Item	Brand	Manufacturer
Servo Motor	Fuji	Japanese	Whole sets
Linear Guide rail	Taiwanese brand HIWIN	Taiwan	Whole sets
Gear rack pinion	Taiwanese brand YYC	Taiwan	Whole sets
Machine servo drivers	Fuji	France	Whole sets
Pneumatic Components	AirTAG	Taiwan	Whole sets
Laser source	IPG	Imported	1set
Laser head	Raytool	China	1 set
Chiller	Hanli	China	1 set
Air condition(option)	Tongfei	China	1set
Low voltage electrical components	CHNT	China	Whole sets
Industrial computer	Yanhua	China	1 set
Lubrication system	China	China	1 set
Touch screen	Jinkong	China	1 set
Control system	Fscut 2000	China	1 set

Core Parameters
Working area	1500mm x 3000mm	Mm
X,Y axis positioning accuracy	±0.05/1000mm	Mm
X,Y axis repeat positioning accuracy	±0.03/1000mm	Mm
Acceleration	1.2 G	m/s²
Max Running Speed	120	m/min
Table Loading capacity	Max 2000KG, suggest 1500KGs	Kg
Machine sizelength x width x height	About 8800×3000×2100	Mm
Voltage requirement	380v/50Hz(60HZ)

Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
Order Evaluation
Exhibition
Customer Photos
Certifications
FAQ
1. How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2. What is your payment terms ?
A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.

3: Where is our factory located? How can I visit there?
A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us.

4. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

5. Can you send the service engineer to our company ?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.
