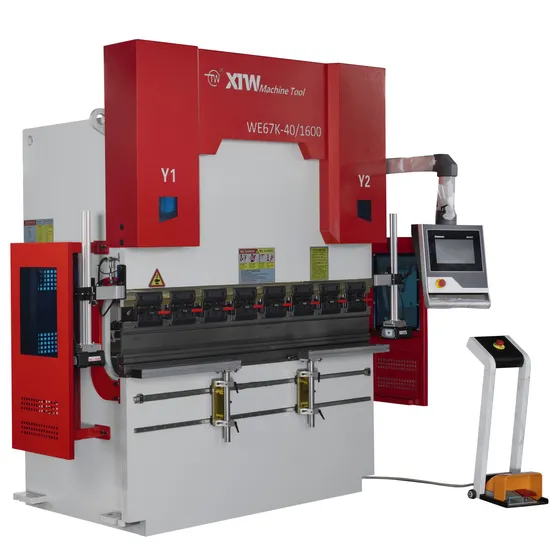

Ultimate CNC Press Brake We67K-40t1600 Mini Bending Machine Delem Da53t Controller

Product Description

Ultimate CNC Press Brake WE67K-40T1600 Mini Bending Machine Delem DA53T Controller Detailed Photos Product Parameters

Model	Noirminal Pressure(KN)	Working Length(mm)	Distance between Columns(mm)	Throat Depth(mm)	Ram Stroke(mm)	MAX Opening Height(mm)	Motor Power(KW)
WE67K-40T2000	400	2000	1600	200	100	300	4
WE67K-63T2500	630	2500	1900	250	120	350	5.5
WE67K-63T3200	630	3200	2500	250	120	350	7.5
WE67K-100T2500	1000	2500	1900	320	120	380	7.5
WE67K-100T3200	1000	3200	2500	320	120	380	7.5
WE67K-100T4000	1000	4000	3000	320	120	380	7.5
WE67K-130T2500	1300	2500	1900	320	120	380	7.5
WE67K-130T3200	1300	3200	2500	320	120	380	7.5
WE67K-130T4000	1300	4000	3000	320	120	380	7.5
WE67K-160T3200	1600	3200	2500	320	200	460	11
WE67K-160T4000	1600	4000	3000	320	200	460	11
WE67K-200T3200	2000	3200	2500	320	200	460	15
WE67K-200T4000	2000	4000	3000	320	200	460	15
WE67K-250T3200	2500	3200	2500	400	250	520	22
WE67K-250T4000	2500	4000	3000	400	250	520	22
WE67K-250T6000	2500	6000	4800	400	250	520	22
WE67K-300T3200	3000	3200	2500	400	250	520	22
WE67K-300T4000	3000	4000	3000	400	250	520	22
WE67K-300T6000	3000	6000	4800	400	250	520	22
WE67K-400T3200	4000	3200	2300	400	250	570	30
WE67K-400T4000	4000	4000	3000	400	250	570	30
WE67K-400T6000	4000	6000	4800	400	250	570	37

Machine Structure
1.Self-designed and manufactured main components of machine tools, overall steel plate welded structure, high strength and rigidity
2. The main structure adopts UGS/CAD/CAE/CAM 3D software for finite element analysis and optimization design
3. Vibration aging is used to eliminate internal stress, and the welds of key parts are tested for flaws
4. The column, upper working slide and lower working table of the machine tool are processed and formed by a floor boring machine and milling machine at one time, which ensures the parallelism, verticality and parallelism of each installation surface.
5. Up-moving bending design, stable work, convenient operation and safety
6. There is a pressure-holding delay function at the bottom dead center to ensure the accuracy of the workpiece
7. The structural parts are derusted by sanding and sprayed with anti-rust paint
8. Y1, Y2, X, +1 (V) axes can be programmed separately, can work under eccentric load, and can also be bent with special shapes
Hydraulic System 1. Driven by proportional servo valve group of German BOSCH company, compact structure, strong sealing performance, high synchronous control precision and long service life 2. The oil pump adopts the American joint venture internal gear pump, which can withstand high pressure and has low noise.
3. The oil cylinder seal adopts Japan NOK company's sealing element, which has low wear and no leakage. The cylinder block and piston rod are formed by one-time processing with Japan Toshiba five-axis linkage floor boring and milling machine and Japan's Dari M132/300 CNC lathe. The inner surface of the cylinder is processed by honing, and the outer surface of the piston rod is processed by vibration grinding
4. Clear and intuitive display of oil level height and temperature
5. The hydraulic system has overload overflow safety protection
6. High-precision guidance system, position measurement system and hydraulic equalization function can meet the needs of full-length processing
7. The machine tool can work continuously under the rated load, the hydraulic system has no leakage and is continuously stable and has high precision
8. The external large-diameter filling valve is used, with high precision and low loss.
Crowning Table
+1(V) axis, in order to ensure the machining accuracy of the workpiece, a mechanical tie rod deflection compensation worktable is specially equipped to control the convex amount of the worktable, and accurate deflection compensation can be obtained on the entire length of the worktable. In the compensation worktable, It consists of multiple sets of wedges with different angles. They can be driven by the motor to form a set of ideal position plus convex curves according to the given signal of the system. Perfect compensation is realized on the whole length to offset the deformation of the working table of the slider under the stress state and improve the quality of the parts. In this way, the winding compensation between the worktable and the slider can be increased or decreased according to the ground pressure, and the pre-convex amount of the convex device is controlled by the numerical control device. After the data about the thickness of the sheet, the opening of the lower die and the tensile strength are input into the numerical control system, the bending force and the compensation value of the worktable and the slider are automatically determined. As a result, a precise amount of pre-bulge can be obtained every time it is bent. Certifications
