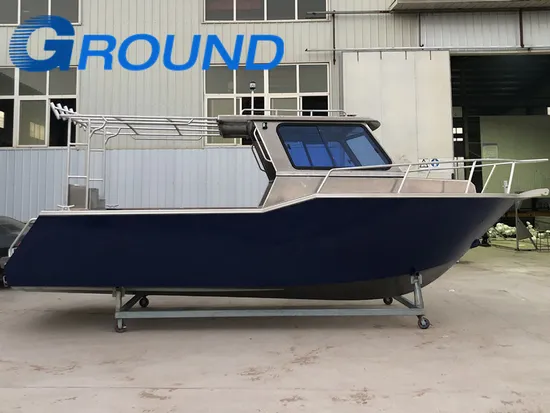

N730 24FT /7.4m Fully Welded Enclosed Cabin Aluminum Alloy Commercial Fishing Boat
| US$18,000.00-28,000.00 | 1 Unit (MOQ) |
Basic Info.
Model NO.
Orion N730
Folded
Unfolded
Seater
8
Hull Material
Aluminum Alloy
Model
Orion N730
Type
Deep V Enclosed Cabin
Engine Type
Outboard
Customized
Available
Certification
CE
Usage
Commercial Fishing
Transport Package
40hc Container
Specification
7.35m*2.5m
Trademark
GROUND
Origin
Qingdao, China
HS Code
8903990090
Production Capacity
200 Units/Year
Product Description
Orion N730Commercial Fishing Boat
Ground Orion Series are designed special for saltwater commercial fishing. This hull has a very front cabin with
large deck space, strong hard top and excellent chine. 6mm bottom plate make it strong enough just like a tank
when cruising off-shore. Our unique deep V design and proper dead-rise give Orion a good performance in the
rough ocean, speedy, smooth, great stability and excellence balance. It's really a true long range craft, If you are
a professional fisher man, it's your best choice.
Specifications
| Model No. | Orion N730 | Approved Passengers | 8 |
| Brand Name | GROUND | Hull Material | Marine Al-Mg 5083 |
| Hull Length Overall | 7.35m | Hull Weight | 1600kg |
| Beam | 2.52m | Bottom Plate | 6.0mm |
| Engine Type | Outboard Motor | Side Plate | 5.0mm |
| Recommended Power | 150hp-300hp | Boat Type | Enclosed Cabin |
| Max Speed | 35kn | Use | Saltwater Leisure and Fishing |
Standard Features and Options
| Standard Features | Options | ||
| Towing eye | Yes | Outboard Motor | |
| Bollard and Cleat | Yes | Hydraulic Steering | |
| Handrails (Front, Side, Cabin, Roof) | Yes | Navigation Instruments | |
| Bow Sprit and Roller | Yes | Navigation Lights | |
| Self Draining Anchor Well | Yes | Switch Pannel | |
| Rod Holders | Yes | Luxury Seats | |
| Internal Fuel Tank 200L X1 | Yes | Bench Seat/Folding Seat | |
| Auto Bilge Pump X1 | Yes | Fuel Tank Upgrade | |
| Self Draining Enclosed Deck | Yes | Deck Wash Kit | |
| Checker Plate/Plain Plate Floor | Yes | Rear Step Platform | |
| Large Deck Space | Yes | Heavy Duty Ladder | |
| Raised Gunnel Desing | Yes | Transom Dive Door | |
| Aluminum Fender | Yes | Front Cabin Hatch | |
| Side Storage Pockets | Yes | Bait Table with Rod Holders | |
| Rear Drainage Hole and Bungs | Yes | Kill Tank | |
| Battery Storage | Yes | Whole Piece Tempered Glass Windscreen | |
| Console and Large Dash Room | Yes | Wiper | |
| Aluminum Box Seat X2 | Yes | Survey Flotation Foam | |
| Detachable Cabin and Hard Top | Yes | Gloss Paint outside and inside | |
| Extended Roof with Rockets launchers | Yes | ||
| Tempered Glass Sliding Windows | Yes | ||
| Headroom with Door | Yes | ||
| Live Bait Tank | Yes | ||
| Transom Transducer Bracket | Yes | ||
| Standard Flotation Foam under Deck | Yes | ||
Orion Series
| Boat ID | Length(m) | Beam(m) | Bottom (mm) | Side (mm) | Recommend Power(hp) |
| Orion N650 | 6.80 | 2.4 | 6.0 | 5.0 | 115-200 |
| Orion N730 | 7.40 | 2.5 | 6.0 | 5.0 | 115-200 |
| Orion N760 | 8.05 | 2.5 | 6.0 | 5.0 | 150-300 |
| Orion N800 | 8.46 | 2.5 | 6.0 | 5.0 | 150-300 |
| Orion N900 | 9.50 | 2.5/2.7 | 6.0 | 5.0 | 250-500 |
| Orion N980 | 10.30 | 3.0 | 6.0 | 5.0 | 300-600 |
Production Details
*Size ,Slogan and colors can be customized
Please contact us for more information.
