Automatic Straight and Bevel 45 Edge Banding Machine Fully Automatic Woodworking for Furniture

Product Description

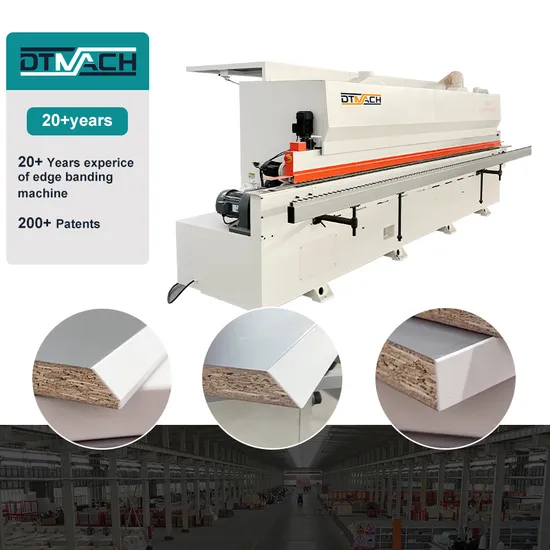

F351 DT fully automatic straight and bevel edge banding machine can seal three shapes (oblique straight edge, pure oblique edge, straight edge), oblique straight edge can achieve 4-sided edge sealing.

Fully autimatic bevel and straight edge banding machine features:
1. The milling type adopts a tool-skipping structure, and the three-sided milling type does not jump, and the diamond milling cutter
2. PUR/EVA glue pot, more easier to clean and change glue
3. Pure bevel, bevel straight edge and straight edge three shapes are switched with one button, easy to operate
4. Oblique and straight independent pressure stickers, box type press-paste 4 straight wheels,4 oblique wheels, pressing and pasting, an auxiliary oblique pressure wheel has been added.
5. The machine adopts constant speed edge sealing, edge sealing speed 12m/min.

Workflow: Bevel milling, Strips slotting, Adhesive tape, Edge banding, End cutting, Edge trimming, Polishing
Product Parameters

Supply voltage	380V/50hz/3phase	Tank volume	2L
Total power	30.3KW	Air pressure	0.6-0.8Mpa
Glue pot capacity	2600ml	Slotted height	3-23mm
Glue pan temperature	110ºC-210ºC	Type of hot melt adhesive	PUR/EVA
Edge banding width	20-70mm	Feed speed	12m/min
Plate shape	Bevel straight edge, Pure beveled edge,Straight edge	Plate thickness	Pure beveled edge: 16-25mm; Straight edge: 16-40mm
Seal plate size	≥250*150mm(250 is the size of the edge banding direction)	Edge banding thickness	0.5-2mm(related to the material of the edge banding)
Straight edge height	≥5mm	Total pre-milling power	17.3KW
Package size	550*110*190(L*W*HCM)	Net weight	2130kg
Type of edge banding material	PVC,veneer(need to be customized)

Detailed Photos
Application
Product Display
Company Profile
Shandong Dongteng Machinery Co., Ltd. is committed to developing ,manufacturing and servicing of the woodworking machinery industry, improving production efficiency for the majority of manufacturers, and contributing to the development of the industry. The company's factory covers an area of more than 35,000 square meter, with more than 200 employees, more than 20 engineers of various types, more than 100 sales, an exhibition hall area of more than 1,500 square meter, and a warehouse area of more 4,000 square meter, providing customers with the best quality service as all times.
* In-depthcooperation with 8000companies,
* 200 patents and certificates,
* Factory more than 35000 square meters,
* After sale Service experienced and knowledgeable team of technical support.
Certifications
FAQ
Q1: I want a edge banding machine , can you give me some suggestions ?A : Sure, we will give recommend of the most suitable machine. Before that, we need to know some information, such as board thickness, strips material, local voltage etc .Q2: Which kind of materials can be processed on this machine?A : PVC, melamine, plastic and other materials.Q3: Are you a factory or trading company ?A: We are the manufacturer for 20 years. You can fully trust the machines we produce . Most importantly, we will provide you with the most thoughtful and best after - sales service.Q4: How should I pay for my order?A: Pay 50% as prepayment as first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment .Q5: How long is the delivery time ?A : For standard machines, it will be 12-15 days . For customization, it will be 15-30 days .
