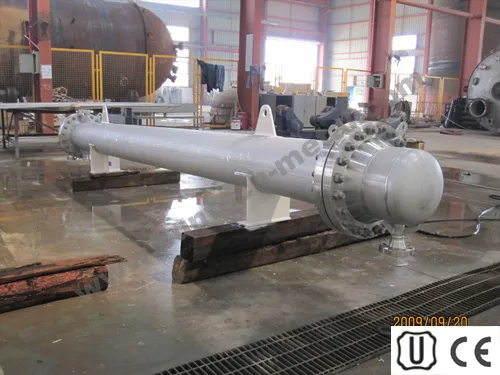

316L Titanium Tube Shell Type Heat Exchanger

Product Description

1.Product Description
Item Name: Industrial Shell Tube Heat Exchanger Price
Application: Fine Chemicals
Tube Material: 316L
Tubesheet Material: 316L
Dimension: Dia. 600* Length 5000mm*Surface 50 sqm
Weight: 4 tons Our Shell and Tube Heat Exchangers can be customised to meet customer requirements. They are available in a wide range of design variations, special materials and features to meet virtually any heat transfer requirements.
The heat exchangers materials are carefully selected to suit the medium flowing in them. The tubes are av
Metathesis Heater are heat exchangers typically used to provide heat to the bottom of industrial distillation columns.
They boil the liquid from the bottom of a distillation column to generate vapors which are returned to the column to drive the distillation separation.
Proper reboiler operation is vital to effective distillation. In a typical classical distillation column, all the vapor driving the separation comes from the reboiler. The reboiler receives a liquid stream from the column bottom and may partially or completely vaporize that stream. Steam usually provides the heat required for the vaporization.
The most critical element of reboiler design is the selection of the proper type of reboiler for a specific service.
Most reboilers are of the shell and tube heat exchanger type and normally steam is used as the heat source.
In such reboilers. However, other heat transfer fluids like hot oil or Dowtherm (TM) may be used. Fuel-fired furnaces may also be used as reboilers in some cases.
Standard specification for our popular products:

Item	Item Name	Code
1	Heat Exchanger	TEMA,ASME,EN13445,PED
2	Tower	ASME,EN13445,PED
3	Vessel	ASME,EN13445,PED
4	Storage Tank	API620,650
5	Reactor	ASME,EN13445,PED

2.Manufacturing Facilities (Partial)
3. Testing Device (Partial)
4. Certificate (Partial)
Suntech has been certificated by ASME U,PED andNB which are accepted by many famous domestic and oversea companies. and also established the quality control systerm based on ISO-9001 which have been implemented to the process of R&D, fabrication, logistic , Markting and services.
5. Company Profile
We provides high grade pressure vessel, reactors, heat exchangers, heaters, towers, tanks, columns, condensers, reboilers, separators, evaporators made of Nickel Alloy, Titanium Alloy, Copper-Nickel Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel and clad metals, designed and fabricated according to ASME U, PED, TEMA, API650, EN13445 and other codes. These products have been widely used in such fields as petro-chemical, chemical, salt manufacturing, pharmacy, metallurgy, power, electronics, sea-engineering and environment protection, by Global Top 50 Chemicals for one decade.
Our mill is entitled with Grade A1 for design, Grade A1 for fabrication of pressure vessels and ASME U stamps authorization. It is an ISO9001 company certified by National Quality Assurance Limited and awarded with three As of Credit Rating and High- tech enterprise.
We have around 40 welders qualified for 252 types of welding, including SAW, STAW, GTAW, GMAW) and 9 persons for non-destructive inspection (including PT,UT,MT,PT), and 5 NDE persons are qualified with the requirements of ASME.
R & D Dep. is capable of designing drawings with CAD according to GB and ASME standards. It has such technique specifications and standards related to designing, including ASME, TEMA, API650 and etc.
Our manufacturing area for pressure vessel is 14000m2(1st phase) and 15000 m2(2nd phase), among which, there are more than 1000M2 isolated workshop on non-ferrous metal welding. Rolling capacity is 80mm maximum and crane capability is 100 tons maximum.
