Laser Cutting Feeder with Low-Maintenance Design for Cost-Effective Operation

Product Description

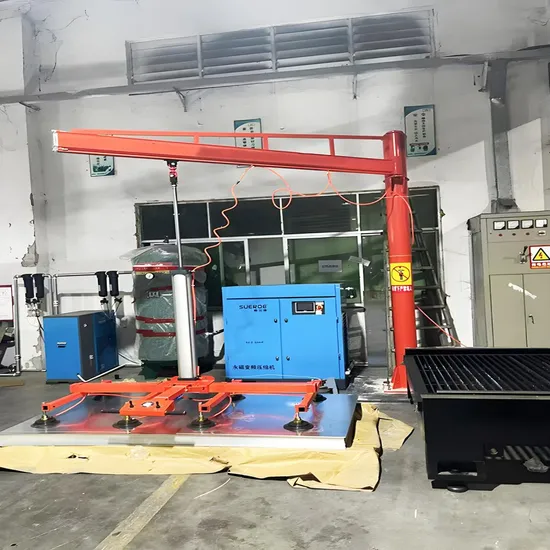

Products Description The laser cutting loading and unloading vacuum suction cup is an auxiliary equipment for laser cutting machines and is used to automate the loading and unloading process. It uses vacuum suction cup technology to firmly fix the workpiece on the suction cup by generating negative pressure, thereby achieving fast and precise loading and unloading operations. Laser cutting loading and unloading vacuum suction cups usually consist of suction cups, vacuum pumps, control systems and other components.
The working principle of the vacuum suction cup for laser cutting loading and unloading is to use a vacuum pump to generate negative pressure, and through the sealed contact between the surface of the suction cup and the surface of the workpiece, the workpiece is firmly adsorbed on the suction cup. When loading, the suction cup absorbs the workpiece from above and moves it to the processing position; when unloading, the suction cup moves the processed workpiece from the processing position to the silo or conveyor belt below. The entire process is precisely controlled by the control system to ensure the accuracy and stability of loading and unloading operations.

Product advantage · Intelligent system sensor control · Strong suction for safety · Easy to operate, easy to disassemble and install · Save labor and reduce strength · Imported material wear and durable
Products Specification: (support customerized size)

Product Model :	XDL-100B3M
Jib Column Size :	3300x219x6mm
Rokcer Beam Size:	4000x22mm
Suction Cup Equipment Size:	2000x1000mm
Cylinder Size:	1000x125mm
Color :	Red/Orange/Blue/White etc
Working Area:	0~3200mm
Stroke Lifter:	1100mm
Rocker Arm Rotation:	0~270°
Max Steel Plate Size:	1500mm*3000mm/4000x2000mm(customerized size)
Application:	Steel plate/aluminum plate/plastic plate/glass plate/stone plate/laminated particle board Moving and Lifting

Pneumatic Tpye Vacuum Lifter
Model	Carne	Rocker Arm	Strok	Capacity	Max Workpieces	Air Pressure	Suction Pad (pcs/dia)
XDL-L100-B3M	3300mm	3000mm	100~1100mm	100kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L100-B4M	3300mm	4000mm	100~1100mm	100kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L300-B3M	3300mm	3000mm	100~1100mm	300kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L300-B4M	3300mm	4000mm	100~1100mm	300kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L500-B3M	3300mm	3000mm	100~1100mm	500kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L500-B4M	3300mm	4000mm	100~1100mm	500kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm

Vacuum lifters offer the perfect solution to streamline production processes and logistics. Whether you need to move steel, glass components, stone, or wood...from point A to point B, you will discover the optimal answer here at Easytech-the pioneer in advanced vacuum handling technologies.
Products Detailed
Cylinder: Using high-quality SNS cylinder, it can bear a maximum load of 500 kg and has high reliability.
Fitting suction cup Made of nitrile rubber material, it is corrosion-resistant and has strong adsorption capacity.
Square hoop The position of the suction cup combination is adjustable to meet workpieces of different sizes, which is free and convenient.
Columns and cantilevers The cast iron is welded firmly, and the brackets are connected with full paint technology, making the joints smooth and stable.

High-Quality and Customizable Design: Our 1000-ton wall-mounted light crane jib crane is designed to meet your specific needs, with customizable features such as rated loading capacity, span, rated lifting moment, and lifting height. This ensures optimal performance and efficiency in your operations. Comprehensive After-Sales Service: Our team provides video technical support to ensure you receive expert assistance and troubleshooting when needed, ensuring minimal downtime and maximum efficiency

Customization Options: The product offers customizable dimensions, number of suction cups, and load weight, making it adaptable to various industrial applications and user requirements.
Easy Integration: The Vacuum Sheet Lift can be seamlessly integrated into various industries, including building material shops, machinery repair shops, manufacturing plants, construction works, energy & mining, and more, with the delivery time and applicable industries needing to be consulted with customer service.
