Auto Knife Pleating Machine for Oil Fuel Air Filter Paper Pleated

Product Description

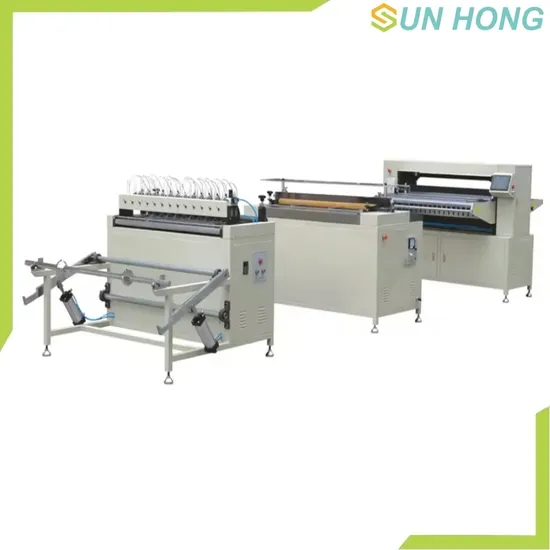

Auto Knife Pleating Machine
Auto Knife Pleating Machine is an important equipment for producing filter element. It suitable for folding 8-100mm filter material.It simplifies the function setting.operation and maintenance to the greatest extent through the menu graphicinterface,with higher reliability Versatility and flexibility.This machine can automatically adjust the folding height, and can change the angle of the knife according to the thickness of different filter materials without damaging the filter materials.

Application
1.The production line is applicable to automobile three filter industry, hydraulic industry, purification industry, water treatment and other industries.
2.The company can customize origami production lines of different specifications according to customer needs (i.e. machine widening and folding height adjustment). This machine can also customize M-type origami machine according to customer requirements.
Main components of equipment
1. Automatic paper tray
2. Pre slitting feeder
3. Printer
4. Automatic counter
5. Filter paper folding machine (the host is equipped with preheating setting board and computer control box).
Technical Parameter

Paper feeding speed	0.5m/min ~ 12m / min adjustable
Adjustable width of filter paper	32 ~ 1100mm
Power supply voltage	220V / 50Hz
Motor power	0.75kw
Working pressure	0.6MPa

Equipment for Making Oil Filter
We can supply all the oil filter making machine for you.
