Sudan Chad Groundnut Peanut Cleaning Machine

Product Description

Sudan Chad groundnut peanut cleaning machine
Product Description
Main Machine Introduction:
This machine is movable and combines low damage bucket elevator, air screen, cyclone dust collector, double gravity separator and grading size function. One-time process can remove the glume, bran,dust,light impurities,blighted grain,bud seeds,moldy grain,smut grain,and large impurities. At the same time, it is able to divide the seed into large, medium and small size, then the seed come out from different outlet.
Main features:
Double gravity separator structure. The machine combines various function and one-time process can get products. It's widely applied to all kinds of crops. It's able to save labor and be energy-friendly. It's environment-friendly with low noise and low dust. Easy to maintain and securious. It's movable. 5XFZ-15BX SINGLE GRAVITY SEPARATOR COMBINED TYPE SEED CLEANER

5XFZ-15S DOUBLE GRAVITY SEPARATOR COMNINED TYPE SEED CLEANER
Product Parameters

Model	5XFZ-15S	5XFZ-15BX
Function	Feeding elevator, Double Air screen, cyclone, dust collector, double gravity separator, vibration screen	Feeding elevator, Double Air screen, cyclone, dust collector, gravity separator, vibration screen
Size L×W×H	8700×2400×3550 mm	6660*2400*3600 mm
Capacity	10 T/H(Based on process wheat)	10 T/H(Based on process wheat)
Voltage	380V(220V/440V need customized) 50/60hz 3 phase	380V(220V/440V need customized) 50/60hz 3 phase
Screen dimension	2400mm×1500mm×3 layers	2400mm×1500mm×3 layers (we can also supply 4 layers)
Power	Total:22.5 kw	Total:15.5 kw

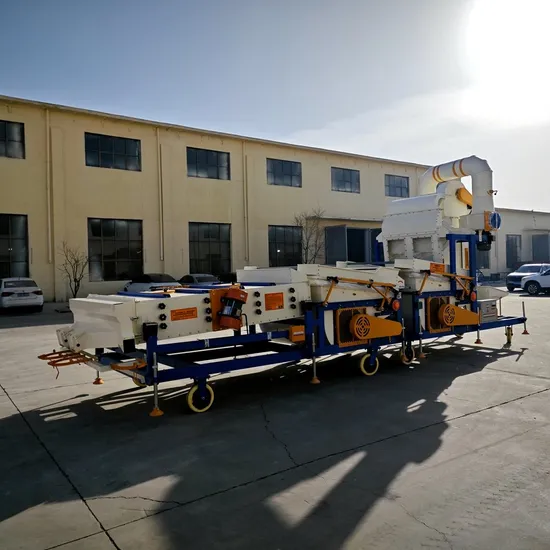

Detailed Photos
look at the excellent quality of our machine. The materials are solid and the workmanship is fine. All welding parts are manually polished and then powder coated. The control box is equipped with contact relays and thermal overload relays. It can effectively ensure the smooth and safe operation of the motor.

5XFZ-15S
The combined type seed cleaning machine function including wheat dehuller, feeding bucket elevator, air screen, dust collector, double gravity separator, vibration cleaner.
5XFZ-15BX
