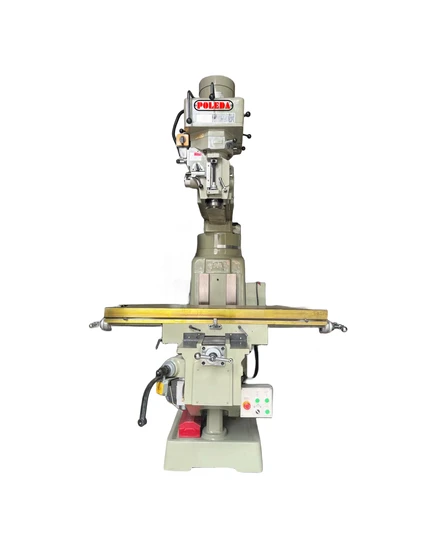

Poleda 5m/5s Universal Vertical Rocker Turret Milling Machine with Advanced Features, China

Product Description

Discover unparalleled precision with our 5M Vertical Metal Turret Milling Machine, the epitome of universal milling excellence. At Dongguan Poleda Precision Machinery Co., Ltd., we pride ourselves on continuously striving for improvement. Experience unparalleled professionalism with every use, because for us, there is no best, only a relentless pursuit of better. 5M Vertical Metal Turret Milling Machine: Precision redefined, exclusively from Dongguan Poleda Precision Machinery Co., Ltd.
Experience the pinnacle of precision with our China Universal Milling Machine. At Dongguan Poleda Precision Machinery Co., Ltd., professionalism is our hallmark.
In our quest for excellence, there is no best, only a relentless pursuit of better.
Product Description
Product Parameters
Product Introduction
The turret milling machine, also known as the rocker arm milling machine, boasts a compact structure, small size, and high flexibility. Its milling head can pivot 90 degrees, rotate 45 degrees front and back, and the rocker arm is capable of both telescoping and 360-degree horizontal rotation. This versatility significantly extends the machine tool's effective working range.
Composition of Excellence
Crafted from high-grade cast iron, the body of the universal radial milling machine promises high precision and longevity, thanks to artificial aging treatment. The lifting platform features rectangular guide rails, ensuring numerous contact surfaces and robust stability. High-frequency treatment and fine grinding result in plastinated slides with remarkable motion accuracy and durability. The spindle, made from chrome-molybdenum alloy with precision angular contact bearings, undergoes tempering and fine grinding to deliver powerful cuts and exceptional precision.
Applications
As a versatile, lightweight universal metal cutting machine, the turret milling machine offers both vertical and horizontal milling capabilities. It's perfect for milling flat, inclined, grooved, and splined surfaces on medium and small parts. This machine finds extensive use in machining, mold making, and various instrument industries.
Turret Milling Machine Mechanical Characteristics
Constructed from m Mihanna cast iron, the casting exhibits excellent rigidity, non-deformation, and stable performance.
The main spindle, crafted from chrome-molybdenum alloy and treated with tempering and heat processes, is paired with precision bearings to ensure strong cutting force and outstanding accuracy.
The milling head gear box, made from durable cast iron, offers superior rigidity and minimal deformation. This results in heavier gravity for more accurate cuts and enhanced durability of the milling head.
The three-axis screw features an advanced phosphorus bronze screw cap, providing enhanced wear resistance and a long service life.
The XY shaft slide undergoes high-wave heat treatment for excellent wear resistance, extending its service life. Additionally, the XY axis interface is fitted with imported wear-resistant plates, ensuring ease of operation and minimal wear.
A state-of-the-art lubrication system ensures uniform oil distribution to all slide points, promoting smooth operation.
This machine weighs 100 kg more than comparable products, adding to its robustness.
Equipped with a powerful 5hp motor and a high-rigidity, precision NT40 spindle, this machine is ideal for handling large parts and heavy-duty cutting tasks.

Product Name	Milling machine
Product model	5M/5S/5HG
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	800MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
	Table bearing	350KG
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	X/Y/Z-axis screw diameter	Tr32/Tr32/Tr35MM
	Three-axis lead screw pitch	5MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1580kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1

Detailed Photos
Our Advantages
Certifications

FAQ
Frequently Asked Questions
1.What is the minimum order quantity (MOQ) for your products?
A. The MOQ varies based on your specific requirements such as color, logo, etc. For standard items that we have in stock, the MOQ is just 1 set.
2.How do you ensure the quality of your products?
A. We have always prioritized maintaining a high level of quality. Our principle is to consistently provideour customers with superior quality, competitive prices, and excellent service.
3.What are your company's main products?
A: We specialize in various types of machinery such as CNC Machines, Lathe Machines, Milling Machines, Grinding Machines, Vertical Machining Centers, DrillingMachines, Radial Drilling Machines, Sawing Machines, and more.
4. What are your trade terms?
A:We accept Ex-works, FOB, CFR, and CIF.
5.What are your payment terms?
A: T/T, with a 30% initial payment when placing the order, and the remaining 70% before shipment.
6.Which CNC systems do you use?
A: We use FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN, depending on your preference.
7.How can I choose the most suitable machine?
A: Send us your product drawings and applications, and we will recommend the most suitable machines for you.
8.What kind of packaging do you offer?
A. Typically, we use plywood cases to ensure all goods are in excellent condition. Customized packaging is also available.
9.Can your plant do OEM?
A:Yes, we can provide both OEM and ODM services for our customers. 10.What is the warranty on your products?
A: The warranty period is one year after delivery. Even after the warranty period, we offer lifetime service for our products.
