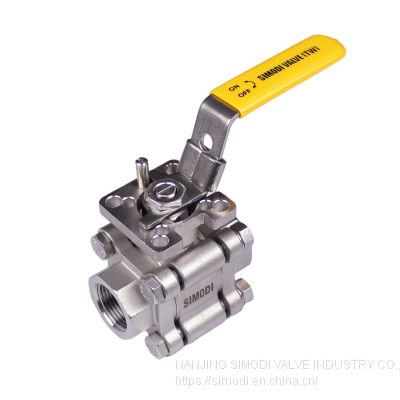

3-pc 1500psi NPT ISO 5211 DIRECT MOUNTING PAD CF8M BALL VALVE

3-pc 1500psi NPT ISO 5211 DIRECT MOUNTING PAD CF8M BALL VALVE

Product Details

Product Details

Product Description

Product Description
Product NameThree piece threaded full bore iso 5211 direct mounting pad ball valve
Model Number3PC Ball Valve
Pressure2000 psi(CWP) for DN8~DN251500 psi (CWP) for DN32~DN50
1000 psi(CWP) for DN65~DN100
Size RangeDN8 to DN100
Type of PortFull Port
Wall ThicknessASME B16.34
MaterialCF8, CF8M, WCB
BallCF8, CF8M

SeatPTFE, RPTFE, PTFE+50%SS, TFM1600, TFM4215
TemperatureAccording to seat material
MediaWater / Oil / Gas
ConnectionScrew End / Socket Weld / Butt Weld
Thread confirm toANSI B1.20.1, BS21, DIN 259 / 2999
Type of threadNPT, BSPT, BSPP, BSP, PT, DIN2999, DIN259, ISO228
Handle sleeveAccording to customer requirements
Features1. INVESTMENT CASTING
2. FLOATING BALL
3. BLOW-OUT PROOF STEM
4. LOCKING LEVER HANDLE
5. ANTI-STATIC DEVICE IS AVAILABLE
6. OEM / ODM Product
7. ISO5211 Direct Mounting Pad
8. Thread End / Weld End available
Quality InspectionMill Certificate 3.1 and/or other per your request
Pressure TestEN12266

CertificationISO, CE
Lead TimeBased on the quantity, sample order available
TermsEX-WORK, FOB, CIF, C&F
PaymentT/T, LC Before shipment for first order.
Place of OriginChina
OptionAPI 607 fire safe design
