Super Wide Endless Conveyor Rubber Belt/Industrial Belt for Chemical/Mining Industry

Product Description

Product Introduction:
The endless conveyor belt is made into a jointless endless conveyor belt in the production process,
Its characteristic is that there is no joint with the core.The surface of the belt is even and the tension is even,
Therefore, the belt runs smoothly and the use of elongation is small.
Widely used in automatic measurement of building materials, mines, chemical industry, metallurgy, grain departments.
The endless conveyor belt is equipped with a high-strength skeleton material, and is manufactured by using a process without joint winding and multi-layer adhesive overlay.High strength, small elongation, good wear-resistance and aging properties,It is an ideal accessory for steel and coal transportation machinery.
The type of endless F converyor belt can be divided into ordinary, heat-resistant, oil-resistant, acid-resistant, alkali-resistant, etc.
Endless conveyor belt can be divided into strong type, ordinary type and light type according to user requirements
Sunny Rubber Conveyor Belt
APPLICATION
To be used for delivering materials in such sectors as coais , mining , port,Metallurgy , power and chemical Industry.
The Sunny Rubber Conveyor Belt is suitable for conveying easy sifted materilas in powder, granulated and small lump, paste and liquid, widely used in loading and unloading transportation systems such as ore mine, coal mine, stations and wharf to conveying materials in shape of lump, partials, and powders, etc.
Cotton Conveyor Belt
CC conveyor belt is suitable for conveying non-corrosive and pointless bulk or granular particle or powder materials, such as coal, coke, sand or cement under normal temperature
Light and thin in construction, high tensile strength, good grooving performance, small power consumption of plant equipment and energy saving.NYLON CONVEYOR BELT
The product is suitable for use in the sectors such as building, port, chemical engineering and mine where requiring medium-and-long conveying distance, high operating speed of conveyor-belt and great conveying volume.
Good elasticity for belt body with high strength, impact resistance, good flexing life, troughability and small elongation for use . EP CONVEYOR BELT
Polyester core conveyer belt is a multi-layer polyester canvas bonded together by a certain way, from top to bottom coverage of high strength, good wear-resistant flexible rubber, no special corrosion for the transmission of small and medium-sized block, powder, granular and other materials. Applicable to long-distance, high capacity, high-speed delivery of materials under the conditions.
High modulus for belt body, small elongation for use. good stability for heat resistance, impact resisting ARAMID-FIBER CONVEYOR
Light weight for belt body. with high strength , impact resistance, small elongation, good flexing life , good stability for heat resistance, with non corrosion .
It is applicable for delivering materials over long distance with bigger load at high speed.
Types
Delaminated conveyor belt of textile construction , with difference of coverings , are classified into such types as ordinary . heat resisting , hi - temperature resisting , antifriction , hot - grinding resisting . ordinary antiflaming , electrostatic conducting acid / alkali resisting , oil resisting and foodstuff

Applied Standards&Key Technical Indicators of Delaminated Conveyor Belt
Types	Standard and key indicators
Ordinary type	B/T 7984
Heat resisting type	HG/T 2297 Type 2 (good for 125°C)
Hi-temperature resisting type	HG/T 2297 Type 3 (good for 150°C)
Hot-grinding resisting type	Abrasion vale≤ 150 mm, good for belowl25°C
Ordinary antiflaming type	Abrasion vale≤90mm3
Antifriction type	GB 10822
Cold-resisting type	Brittleness temperature-50°C
Acid.alkali and oil resisting type	HG-4846
Note:Design can be made subject to various application.

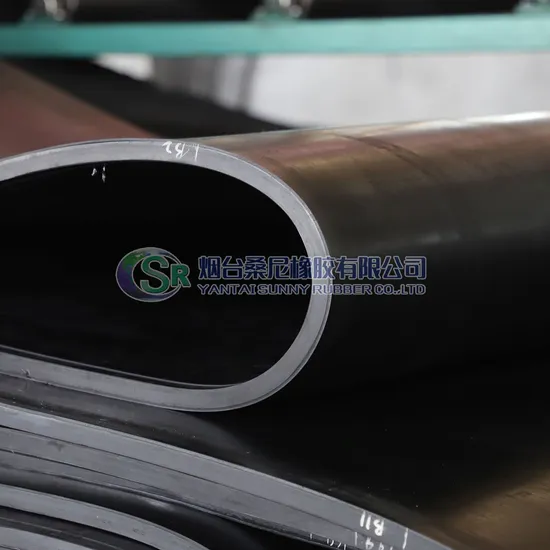

Super Wide Rubber Conveyor BeltWhen the belt is wider than 1.8m, we call it super wide belt. Sunny Rubber has 3.5m and 6.5m wide vulcanizing machines, which can make belts from 1800-5500mm. Thickness can be from 12-42mm. The surface is smooth due to good quality of equipment and good production process. Customers can customize different belts based on different special requirements.
Manufacturing strength:
1. Complete testing devices and process
2. Effective production equipment and process
3. Reliable inspection team
Package
Company profile
Yantai Sunny Rubber Co., Ltd established in 2005, located in Economic Development Area of Qixia City, Shandong Province. It is high-tech enterprise. Main products are pneumatically operated spillway gate, rubber dam, filter belt, conveyor belt, etc.
The workshop is 22,000 square meters, equipment 200 sets, worker 230. It owns 11 patents for invention, 18 patents for utility. With the full capacity of design, production, installation and after sales, more than 100 spillway gates were built by Sunny in domestic, for power plant impounding and river management. Our product also export to Italy, Thailand, Philippines, South Africa, Argentina etc.
