Narrow Aisle Used New Compact Scissor Lift for Sale by Owner

Narrow Aisle Used New Compact Scissor Lift for Sale by Owner

US$4,900.00
1-3 Pieces
US$4,300.00
4 Pieces
US$4,000.00
5+ Pieces

Basic Info.

Model NO.
SS06E
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Middle-Level
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, ISO 9001
Maximum Platform Height
5.9m
Overall Machine Height (Fence Not Folded
2.2 M
Platform Extension Size
0.86 M
Working Load
230 Kg
Maximum Number of Workers (Indoor/Outd
2/0
Driving Speed-Stowed
3.5 Km/H
Rising/Falling Speed
25/35 S
Power
24V DC
Total Weight
1390 Kg
Transport Package
Wooden Box
Specification
2.83 m*1.39 m*13.8 m
Trademark
KINGDA
Origin
Tianjin, China
HS Code
84289090
Production Capacity
4000PCS/Year

Product Description

KINGDA HEAVY-DUTY
Professional manufacturer of high-altitude operation equipment Efficient high-altitude operation solution

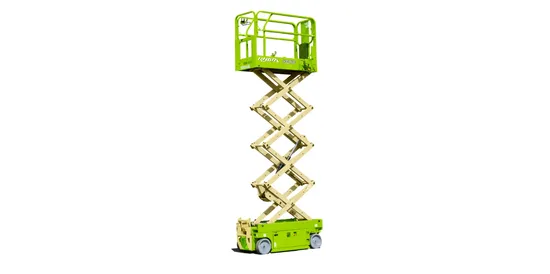

Self-propelled Scissor Lift
Platform Height:6m
Product Feature
Electrophoresis treatment is adopted for the structural parts of the wholevehicle,and the anti-corrosion
performance is more than three times of that of the electrically driven walking of similar products.
Higher working height at the same number of fork arms.
Electrically driven walking, more stable travel braking.
Double load system to maximize the efficiency of equipment use.
High-strength steel is adopted for key parts to improve the overall strength.
Standard forklift holes and special lifting points for ease of equipment loading and unloading.
The design of central fork arm can effectively improve the stability and comfort of the platform.

Standard Configuration

Proportional control Oil tube explosion-proof system Hand brake release
Platform self-locking door Fault diagnosis system Lanyard attachment point
One-way extension platform Tilt protection system Fixed and lifting points
Full travel Action buzzer Standard transport forklift holes
Solid traceless types Electric horn Work schedule Emergency stop system
Two-wheel drive Safety maintenance bracing piece Maintenance free battery
Two-wheel steering Charging protection system GPS
Automatic braking system Stroboscope light Remote monitoring and lease management platform
Emergency descent system Fixed guardrail Automatic pothole protection

Specification Parameters
Model SS06E
Size Metric
Maximum Platform Height 5.9 m
Overall machine length 1.84 m
Overall machine width 0.76 m
Overall machine height (fence not folded) 2.2 m
Overall machine height (fence folded) 1.78 m
Working platform size (length × width) 1.7×0.76 m
Platform extension size 0.86 m
Minimum ground clearance (stow/lift) 0.08/0.02 m
Wheelbase 1.32 m
tire 0.32×0.1 m
Performance
working Load 230 kg
Working Load-Extended Platform 100 kg
Maximum number of workers (indoor/outdoor) 2/0
Maximum climbing ability 25%
Driving speed-Stowed 3.5 km/h
Driving speed-Raised 0.8 km/h
Minimum turning radius (inner/outer wheel) 0/1.5 m
Maximum allowable working angle (front and back/left and right) 3°/1.5°
Rising/Falling speed 25/35 s
power 24V DC
battery capacity 200 AH
Total Weight 1390 kg

Application
It is widely used for aerial installation and maintenance of the working sited such as hotel, grand hall, sport stadium, large factory, workshop, warehouse, granary, bus or railway station, airport, gas station and aerial pipeline.
Certifications


Cooperation Partner
Our Factory
Packaging&Shipping
FAQ
Q:What's your main products of your company?A:We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC MillingMachine,CNC TurningMaching, Vertical Machining Center ,Horizontal MachiningCenter, Lathe Machines, Turning andmilling composite processing so onQ:Where do you export?A:The whole world.Q:Could you produce non-standard products?A:Yes, we can. Please supply samples or drawing.Q;How do you transport it?A:Provide Transportation Solution DDP/CIF/FOB/FCAQ: What's the Payment Terms?A:T/T ,30% initial payment when order,70% balance paymentt before shipment.Q:What's the MoQ?A:1 set .(Only some low cost machines will be more than 1 seet )We want to know:1.We strongly suggest you to tell us size, material of your workpiece for ourevaluation if possible, better to send us workpiece drawing, so that we canrecommend you most suitable model!2.lf need CIF Price, please kindly tell us the port of destination
• Warranty:
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault.
3. We will send you parts for free if there are any non-human factors problem during
warranty time.
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and
holidaysm engineers are available to your company if necessary.
