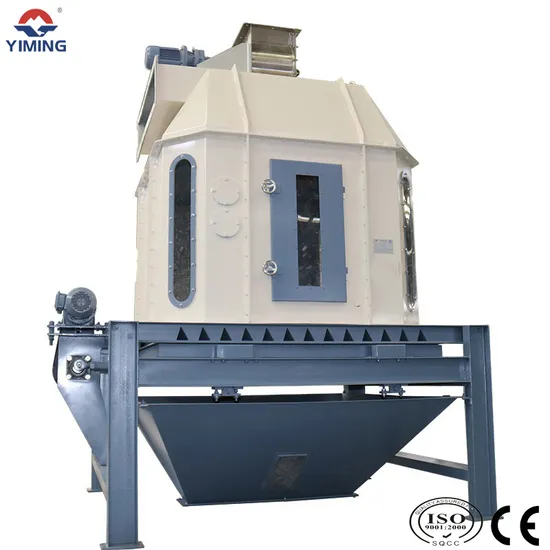

Industrial Air Counter Flow Cooler for Animal Feed

Product Description

Product Description
The features of feed counter-flow cooler
1. Feed counter-flow cooler is suitable for cooling various kinds of pellets such as pelleted feed, expanded feeds, extruded feeds and flake feeds etc.
2. Feed counter-flow cooler is structurally arranged in a vertical way, the appearance is simple and beautiful.
3. Feed counter-flow cooler is equipped with a reciprocating grate type discharging device, which is characterized by its smooth material flowing and uniform discharging.
4. The novel rotary spreader ensures materials for uniform and complete cooling with reduced breakage, featuring adjustable range of material distribution and lowered power consumption.
5. There are some pressure-relief plates provided above the discharging device, which can greatly improve the working load of the discharging device, reduce SKLN series feed counter-flow cooler's distortion, and extend the service life of the component parts.
Performance
The performance of feed counter-flow cooler
1.Counter-flow cooling,cool the pellets and lower humidity,after cooling the pellet temperature above room temperature 3-5 ºC ; precipitation rate=3.5%.
2.Rear elastic support reduces the noise greatly and improves the classification performance.
3.Using slide valve discharge structure,stable and reliable operation , the residual is small.
4.Suitable for cooling of various granular materials.
Working Principle
The working principle of feed counter-flow cooler
When pellet came out from Pellet Machine, it contains determinate moisture as 8~17%, temperature around 70~85°C, if the environment air with high humidity, pellets will absorb moisture from air, and will get mildew when storage. So a Feed Pellet Cooler is needed to keep pellets dry and safe to achieve storage requirement.
Product Parameters

Model	SKN1.0	SKN2.5		SKN4.0
Capacity (t/h)	1-2	4-5		10-15
Main powder (KW)	0.75	1.5		1.5
Volume(m³)	1	2.5		4
Cooling time	≥ 10-15 min
Discharge motor power(kw)	0.75		1.1		1.1
Airlock Power	0.75		0.75		0.75
