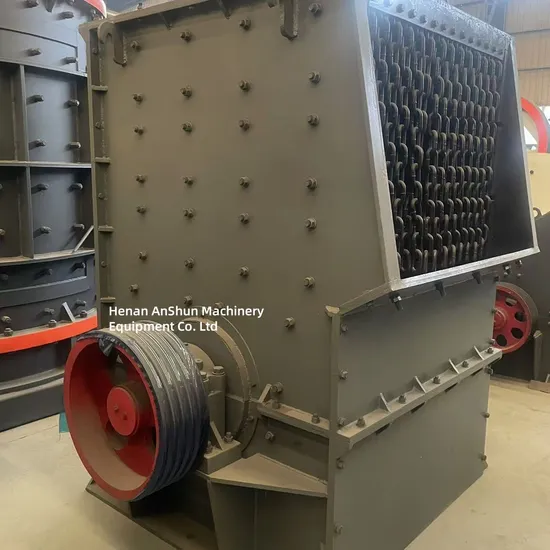

Best Selling 2025 Box Crusher Manufacturers for Sale

Product Description

Product Introduction
This machine is used to crush medium-hard brittle materials, such as limestone, coal and other materials. The maximum compressive strength of the crushed materials does not exceed 150kg/cm. It is mainly used in highways, railway stones, cement, mining, coal preparation, power generation, chemical industry and building materials. It is particularly suitable for stone factories with an output of less than 300 cubic meters per hour. It has a compact structure, reasonable process, small investment and high economic benefits.

Working Principle
The rotor disc is driven by the motor to drive the hammer to do high-speed circular motion. When the material enters the crushing chamber, the large pieces of material are piled on the middle shoulder bar set in the machine. After being crushed, the material with a particle size larger than the required size is hit along the tangent direction of the hammer head to the impact plate for further crushing along with the new material, so that the coarse and medium crushing are completed in one step. Finally, the material that meets the requirements is discharged after being integrated through the sieve plate.
Performance characteristics
1. Large feed size, large crushing ratio, uniform discharge;
2. High yield rate, granular products account for about 85%, fully meeting the use requirements;
3. High output and stable performance;
4. Coarse and medium crushing in one step, simplified process flow;
5. High wear-resistant materials are used for hammers, sieves and impact plates, which have a longer service life;
6. Small matching power, low energy consumption, simple maintenance, and few wearing parts.
Specifications and Performance Parameters

Model	700×1000	900×1200	1000×1000	1000×1200	1400×1400	1600×1600	1800×1800
Rotor Diameter(mm)	700	900	1000	1200	1400	1600	1800
Rotor Length(mm)	1000	1200	1000	1000	1400	1600	1800
Production(t/h)	50-80	70-100	90-120	90-120	190-210	250-300	300-400
Input Size(mm)	≤500	≤800	≤800	≤900	≤1000	≤1000	≤1200
For Stone	Various types of stone(compressive strength under 300mpa)
Power(kW)	45-55	75-90	75-90	90-110	132-160	160-210	210-280

Applicable materials
medium and fine crushing of hard and medium hard rocks such as quartz, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase, bluestone, etc.
Company Profile
Henan Anshun Machinery Equipment Co., Ltd. is a modern enterprise engaged in the research and development, production, sales and service of equipment in the fields of mining crushing, building crushing, tower sand making, etc. It is the first unit to pass the ISO9001 quality certification system, the EU CE certification unit, and an enterprise with the right to import and export. Over the years, the company's products have been sold well throughout the country and exported to Vietnam, North Korea, Central Africa and the Middle East countries and regions. The company's after-sales service team is spread all over the world. The complete after-sales service management system has been recognized and praised by the industry, and is well-known at home and abroad, becoming a shining pearl in my country's mining machinery manufacturing industry. Packaging & Shipping
Certifications
FAQ
Support: We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience. After-sales service support : After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands. We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc. Technological support : ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.
